[ENG] Integer Cube Root in Verilog

в 17:36, , рубрики: fpga

Introduction

We have created a synthesizable verilog code for calculating an integer cube root of an integer number via binary search algorithm. This code had been tested on Cyclone IV FPGA board. Here you can read about implementation and understand how things works.

Github link: Cube root

What Is a Cube Root?

Cube root of a number y is a number x such that$$display$$x^3=y$$display$$

Examples:
$$display$$
sqrt[3]{8} = 2 \
sqrt[3]{27} = 3 \
sqrt[3]{64} = 4
$$display$$
So, in our implementation we use an integer cube root.
It means that a cube root of an integer number x is an another integer number a such that:
$$display$$a^3 leqslant x, \ (a+1)^3 geqslant x$$display$$
Examples:
$$display$$
sqrt[3]{26} = 2 \
sqrt[3]{28} = 3 \
sqrt[3]{63} = 3 \
sqrt[3]{65} = 4
$$display$$

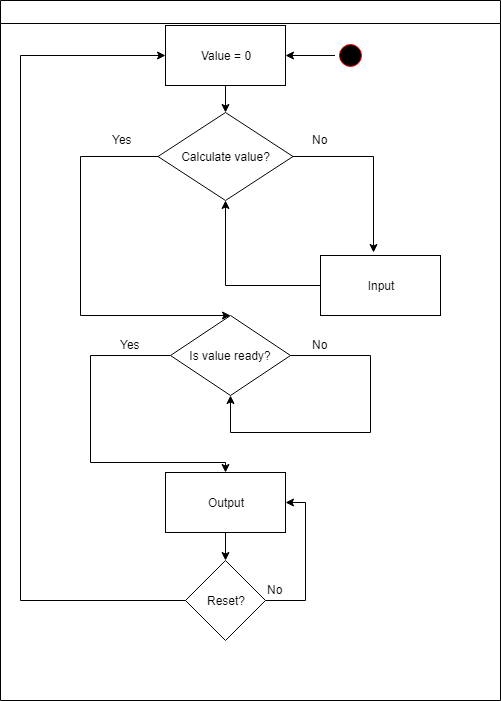

Main Logic


Main module is responsible for all the actions with a number during input.
It has 4 possible actions:

  • multiply increment by 10
  • divide increment by 10(increment is always not less than 1)
  • increase number
  • decrease number

Main module

module cube_root(
	input inc,
	input sub,
	input next,
	input prev,
	input enter,
	input clk,
	output wire [7:0] leds,
	output wire [7:0] control
);

	reg signed [31:0] exit;
	wire ready;
	wire [31:0] res;
	reg zero = 0;

	// input //

	reg inc1 = 0;
	reg next1 = 0;
	reg prev1 = 0;
	reg sub1 = 0;
	reg enter1 = 0;
	reg [31:0] decimal = 1;

	//////////

	reg [31:0] to_display;

	display_bcd display(
		.clk(clk),
		.value(ready == 0 ? exit : res),
		.control(control),
		.leds(leds)
	);

	calculate calc(
		.clk(clk),
		.ready_to_calc(~enter),
		.num(exit),
		.ready(ready),
		.res(res)
	);

always @(posedge clk)
begin
	if (enter == 1) begin
		if ((inc1 == 1'b0) && (~inc == 1'b1)) begin
			exit = exit + decimal;
		end
		inc1 = ~inc;

		if ((sub1 == 1'b0) && (~sub == 1'b1)) begin
			if (exit > 0) begin
				exit = exit - decimal;
			end
		end
		sub1 = ~sub;

		if ((next1 == 1'b0) && (~next == 1'b1)) begin
			decimal = decimal * 10;
		end
		next1 = ~next;

		if ((prev1 == 1'b0) && (~prev == 1'b1)) begin
			if (decimal >= 1 && decimal <= 9) begin
				decimal = 1;
			end else begin
				decimal = decimal / 10;
			end
		end
		prev1 = ~prev;
	end else begin
		if (ready == 1'b1) begin
			exit = 0;
			decimal = 1;
		end
	end
end

endmodule

In the main module cube_root there are also two other modules: calculate and display_bcd. The first one doing all required calculations, while the second module is responsible for displaying input and output values during the programm execution.

Now, let's understand how they work.

Calculate module

Calculation module uses a binary search algorithm. And when all the calculations are done it sets ready variable to 1. It is a signal for display module to output the answer.

Calculate module


module calculate(
  input clk,
  input ready_to_calc,
  input [31:0] num,
  output reg ready,
  output [31:0] res
);

integer mid;
integer start;
integer final;
integer counter;

assign res = mid;

always @(posedge clk)
begin
if (ready_to_calc == 1) begin
  if (ready == 0) begin
    mid = (start + final )/2;

    if ((mid*mid*mid) > num) begin
              final = mid;
      end else begin
              start = mid;
    end

    if (counter == 27) begin
      ready = 1;
      counter = 0;
    end else begin
      counter = counter + 1;
    end
  end
end else begin
  final = 465;
  start = 0;
  ready = 0;
  counter = 0;
end
end

endmodule

Why this module does exactly 27 iterations?
— Maximum input number is 99999999. So, maximum possible number of iterations is $inline$log_2 99999999 = 26.575424745 approx 27$inline$
Why upper bound of binary search is initialized by 465?
— Because it is maximum number we can get as a result. $inline$ sqrt[3]{99999999} approx 464$inline$

Display module

This module is responsible for the performance. It uses eight eight-segment displays and they are manipulated by 16 pins. Where 8 pins are «in charge» for particular leds on display and other 8 ones are control segments, they represent distinct digits.

So, we pass an integer value that we want to display to this module. Then, it passes this value to the Binary_to_BCD module which converts binary number to the Binary Coded Decimal using Double Dabble algorithm. After that, converted value becomes easy to display.

Display module

module display_bcd (
	input clk,
	input [31:0] value,
	output [7:0] control,
	output [7:0] leds
);


bcd_convert #(32, 8) bcd_convert(
	.i_Clock(clk),
	.i_Binary(value_temp),
	.i_Start(1'b1),
	.o_BCD(bcd_number),
	.o_DV(bcd_ready)
);

integer delay = 0;
integer final_bcd;

reg [2:0] ctrl = 0;
reg [4:0] digit;

wire bcd_ready;
wire [31:0] bcd_number;

wire [31:0] digits;
assign digits = final_bcd;

wire [31:0] value_temp;
assign value_temp = value;


assign control = ~(1 << ctrl);

assign leds = ~
(digit == 0 ? 8'b00111111 :
(digit == 1 ? 8'b00000110 :
(digit == 2 ? 8'b01011011 :
(digit == 3 ? 8'b01001111 :
(digit == 4 ? 8'b01100110 :
(digit == 5 ? 8'b01101101 :
(digit == 6 ? 8'b01111101 :
(digit == 7 ? 8'b00000111 :
(digit == 8 ? 8'b01111111 :
(digit == 9 ? 8'b01101111 :
8'b00000000))))))))));


always @(posedge clk)
begin

	if (bcd_ready)
		final_bcd = bcd_number;

	case(ctrl)
		0: digit = digits[3:0];
		1: digit = digits[31:4] ? digits[7:4] : 10;
		2: digit = digits[31:8] ? digits[11:8] : 10;
		3: digit = digits[31:12] ? digits[15:12] : 10;
		4: digit = digits[31:16] ? digits[19:16] : 10;
		5: digit = digits[31:20] ? digits[23:20] : 10;
		6: digit = digits[31:24] ? digits[27:24] : 10;
		7: digit = digits[31:28] ? digits[31:28] : 10;
	endcase

	delay = delay + 1;

	if (delay == 10000)
		ctrl = ctrl + 1;

end

endmodule

BCD convert

module bcd_convert
  #(parameter INPUT_WIDTH,
	parameter DECIMAL_DIGITS)
  (
   input                         i_Clock,
   input [INPUT_WIDTH-1:0]       i_Binary,
   input                         i_Start,
   output [DECIMAL_DIGITS*4-1:0] o_BCD,
   output                        o_DV
   );

  parameter s_IDLE              = 3'b000;
  parameter s_SHIFT             = 3'b001;
  parameter s_CHECK_SHIFT_INDEX = 3'b010;
  parameter s_ADD               = 3'b011;
  parameter s_CHECK_DIGIT_INDEX = 3'b100;
  parameter s_BCD_DONE          = 3'b101;

  reg [2:0] r_SM_Main = s_IDLE;

  // The vector that contains the output BCD
  reg [DECIMAL_DIGITS*4-1:0] r_BCD = 0;

  // The vector that contains the input binary value being shifted.
  reg [INPUT_WIDTH-1:0]      r_Binary = 0;

  // Keeps track of which Decimal Digit we are indexing
  reg [DECIMAL_DIGITS-1:0]   r_Digit_Index = 0;

  // Keeps track of which loop iteration we are on.
  // Number of loops performed = INPUT_WIDTH
  reg [7:0]                  r_Loop_Count = 0;

  wire [3:0]                 w_BCD_Digit;
  reg                        r_DV = 1'b0;

  always @(posedge i_Clock)
	begin

	  case (r_SM_Main)

		// Stay in this state until i_Start comes along
		s_IDLE :
		  begin
			r_DV <= 1'b0;

			if (i_Start == 1'b1)
			  begin
				r_Binary  <= i_Binary;
				r_SM_Main <= s_SHIFT;
				r_BCD     <= 0;
			  end
			else
			  r_SM_Main <= s_IDLE;
		  end


		// Always shift the BCD Vector until we have shifted all bits through
		// Shift the most significant bit of r_Binary into r_BCD lowest bit.
		s_SHIFT :
		  begin
			r_BCD     <= r_BCD << 1;
			r_BCD[0]  <= r_Binary[INPUT_WIDTH-1];
			r_Binary  <= r_Binary << 1;
			r_SM_Main <= s_CHECK_SHIFT_INDEX;
		  end


		// Check if we are done with shifting in r_Binary vector
		s_CHECK_SHIFT_INDEX :
		  begin
			if (r_Loop_Count == INPUT_WIDTH-1)
			  begin
				r_Loop_Count <= 0;
				r_SM_Main    <= s_BCD_DONE;
			  end
			else
			  begin
				r_Loop_Count <= r_Loop_Count + 1;
				r_SM_Main    <= s_ADD;
			  end
		  end


		// Break down each BCD Digit individually.  Check them one-by-one to
		// see if they are greater than 4.  If they are, increment by 3.
		// Put the result back into r_BCD Vector.
		s_ADD :
		  begin
			if (w_BCD_Digit > 4)
			  begin
				r_BCD[(r_Digit_Index*4)+:4] <= w_BCD_Digit + 3;
			  end

			r_SM_Main <= s_CHECK_DIGIT_INDEX;
		  end


		// Check if we are done incrementing all of the BCD Digits
		s_CHECK_DIGIT_INDEX :
		  begin
			if (r_Digit_Index == DECIMAL_DIGITS-1)
			  begin
				r_Digit_Index <= 0;
				r_SM_Main     <= s_SHIFT;
			  end
			else
			  begin
				r_Digit_Index <= r_Digit_Index + 1;
				r_SM_Main     <= s_ADD;
			  end
		  end



		s_BCD_DONE :
		  begin
			r_DV      <= 1'b1;
			r_SM_Main <= s_IDLE;
		  end


		default :
		  r_SM_Main <= s_IDLE;

	  endcase
	end // always @ (posedge i_Clock)


  assign w_BCD_Digit = r_BCD[r_Digit_Index*4 +: 4];

  assign o_BCD = r_BCD;
  assign o_DV  = r_DV;

endmodule // Binary_to_BCD
