Тестирование Fusion-io ioDrive2

в 7:38, , рубрики: fusion-io, Fusion-io ioDrive2, IT-стандарты, Блог компании «Server-Unit», ит-инфраструктура, метки: ,

В первом квартале этого года, наша компания Server-Unit стала первым авторизованным представителем компании Fusion-io в России.
Вместе с красивым сертификатом и официальным статусом, мы получили карту Fusion-io ioDrive2 как говорится «на пощупать» нашим техническим специалистам, а мы в свою очередь, уже активно даём его для проведения тестов нашим клиентам.

Тестирование Fusion io ioDrive2
Тестирование Fusion io ioDrive2

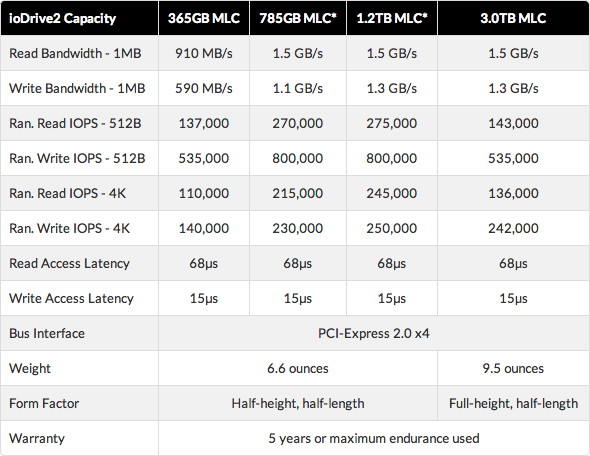

Нашим тестовым экземпляром была плата объёмом 1,2Tb на MLC памяти. Да, плата не из самых новых-передовых, но тоже пожалуй достойна детального разбора. Заявленные производителем характеристики выглядят следующим образом:
Тестирование Fusion io ioDrive2
В общем то ничего особенного, для современных PCI-E SSD мы тут не видим, но наша задача не просто посмотреть на цифры, предлагаемые производителем, но и проверить — на сколько они отличаются от реальных показателей в работе, ведь и задачи и методы тестирования у всех крайне сильно отличаются. Мы немного поиздевались над платой, полностью её разобрав, дабы заглянуть и посмотреть — что же там внутри.
Тестирование Fusion io ioDrive2

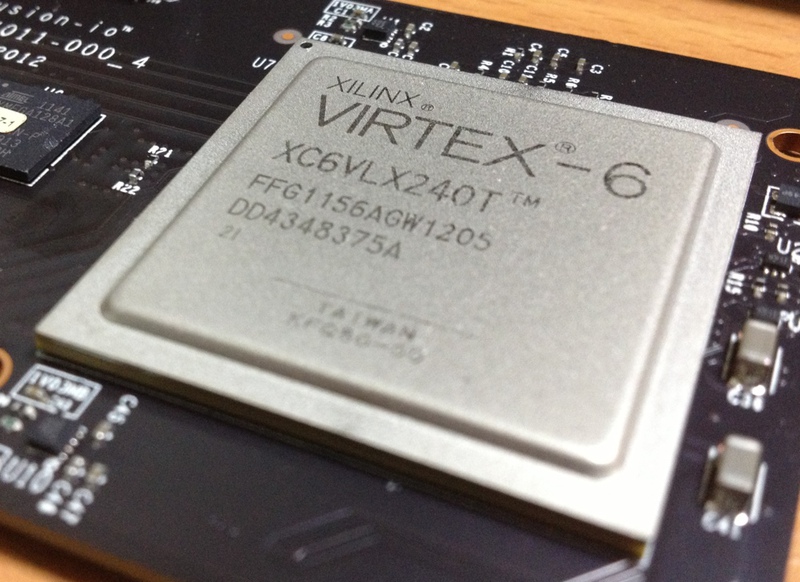

Вскрытие показало, что он построен с применением платы FPGA следующего поколения, для управления флешем — Virtex-6, производства Xilinx.
Тестирование Fusion io ioDrive2

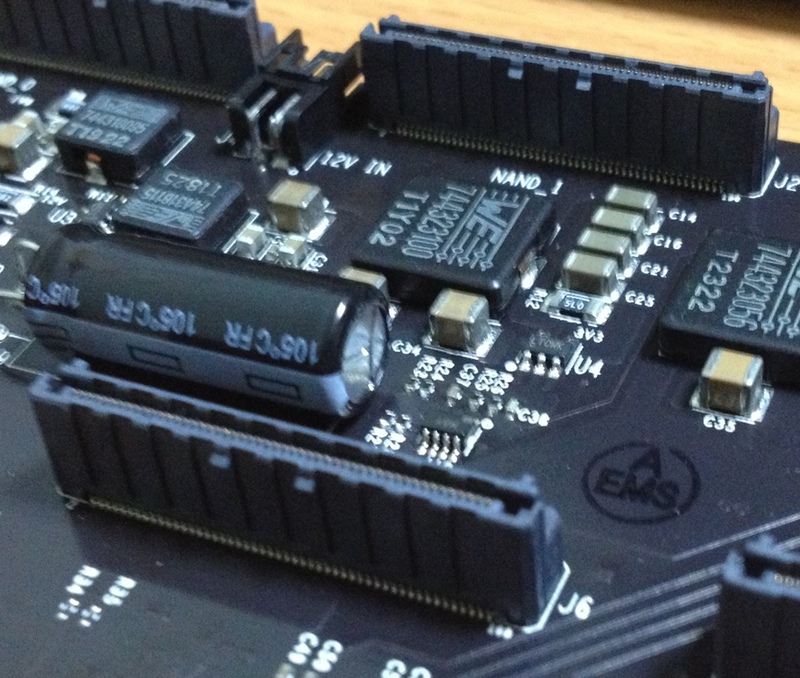

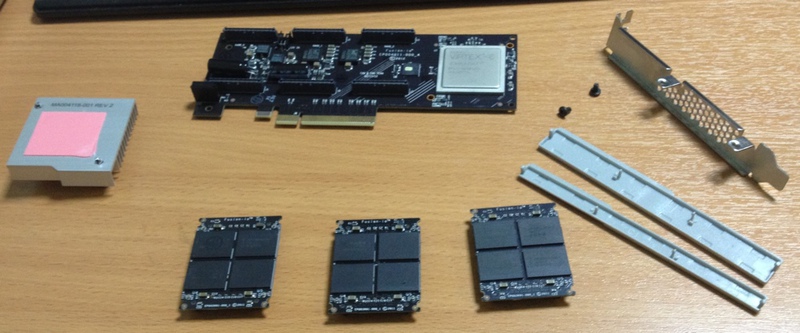

А вот реализация модулей памяти на плате приятно удивила (правда пока сложно сказать практическое применение данного решения), они не просто распаяны на плате, они вставлются в специальные разъём несколькими модулями.
Тестирование Fusion io ioDrive2

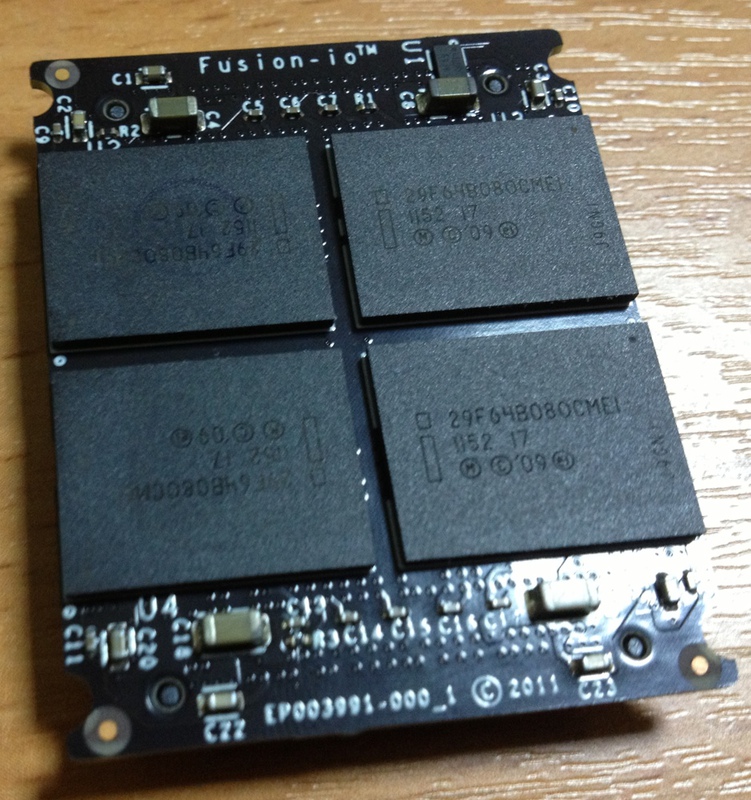

Но сами модули выглядят следующим образом (а снизу соответственно две продольные ножки, которыми эти модули вставляются в слоты).
Тестирование Fusion io ioDrive2
К сожалению, у нас не нашлось второй такой платы, что бы проверить взаимозаменяемость этих модулей, возможно в случае выхода из строя какого-то из наборов памяти — эти облегчит гарантийный ремонт платы, т.к. не придётся заменять её целиком. Тут, к сожалению, как и в обзоре Fusion-io ioDrive Duo нас постигло разочарование — несмотря на использование нескольких отдельных модулей, ни о каком аппаратном RAID`е речи не идёт. Возможно это задел на будущее, т.к. для работы на таких скоростях требуется достаточно большие вычислительные мощности и как следствие — охлаждение, но хочется всё-таки надеяться что когда то мы сможем оценить прелести аппаратного RAID при использовании PCI-E SSD устройств.
Ну что ж, давайте перейдём непосредственно к тестам. Прежде чем говорить о железной составляющей нашей тестовой машины, хотелось бы уточнить один момент, который небыл озвучен в обзоре Fusion-io ioDrive Duo — требование к объёму оперативной памяти. Производитель рекомендует (при использовании блоков 4096b) на каждые 100Gb объёму накопителя требуется 530MB оперативной памяти. Соответственно для того что бы накопитель на 1,2Tb работал «правильно» требуется минимум ~6,5GB оперативной памяти.

Конфигурация тестового стенда:
Платформа — HP ProLiant DL380 G7
Процессор — Xeon E5606
Память — 8 Гб
Жесткие диски — 2xSAS 146Гб 10k
После нескольких наших статей по накопителям в прошлом году, и по отзывам к ним, мы немного изменили набор, проводимых нами тестов и теперь он выглядит следующим образом:

  • AS SSD Benchmark
  • ATTO Disk Benchmark
  • CrystalDiskMark 3
  • Fio
  • Iometr

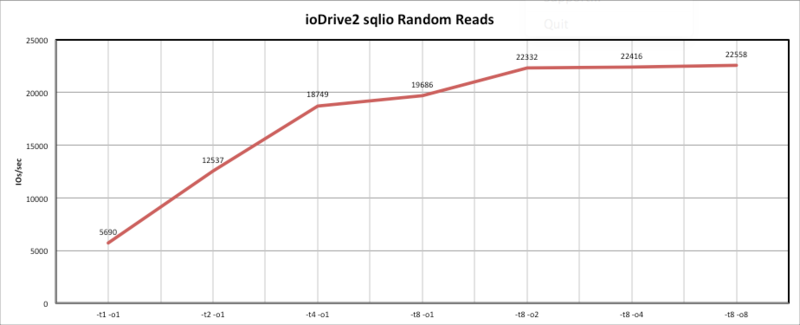

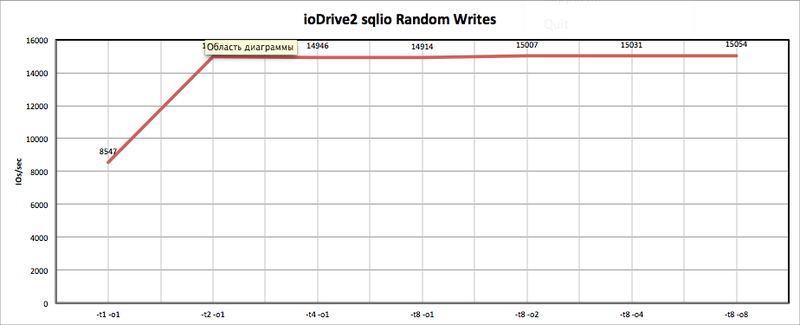

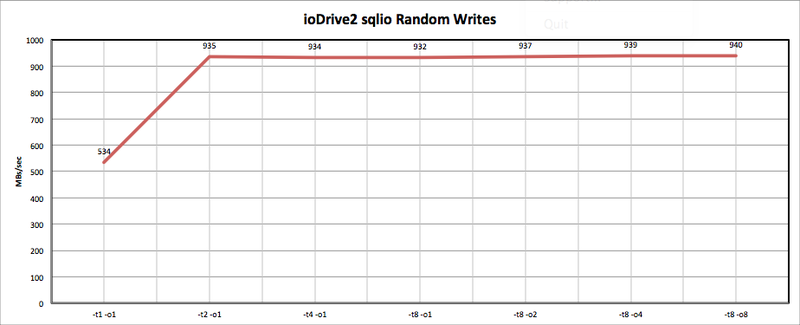

  • SQLIO

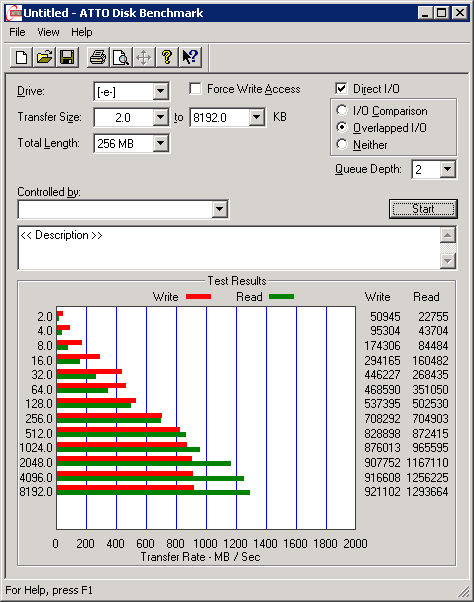

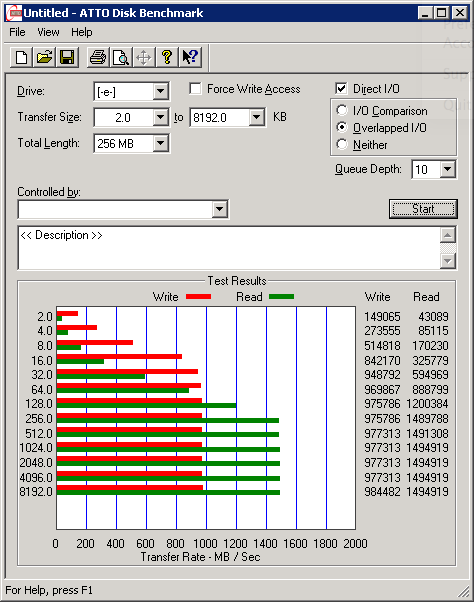

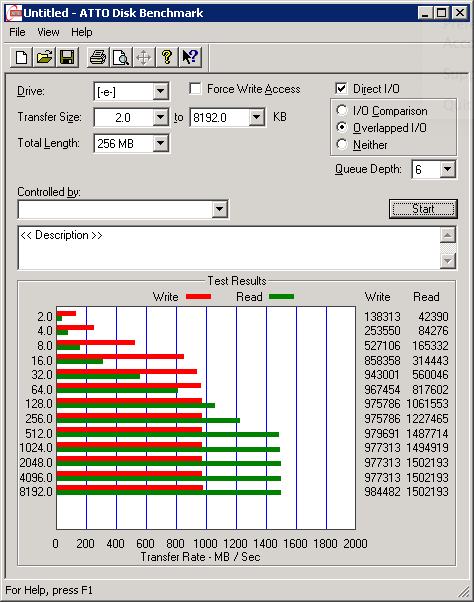

ATTO Disk Benchmark
Мы проводили тестирование с параметрами:
Total Length = 256 Mb
Queue Depth = 2-10
Тестирование Fusion io ioDrive2
Тестирование Fusion io ioDrive2
Тестирование Fusion io ioDrive2
Тестирование Fusion io ioDrive2
Тестирование Fusion io ioDrive2

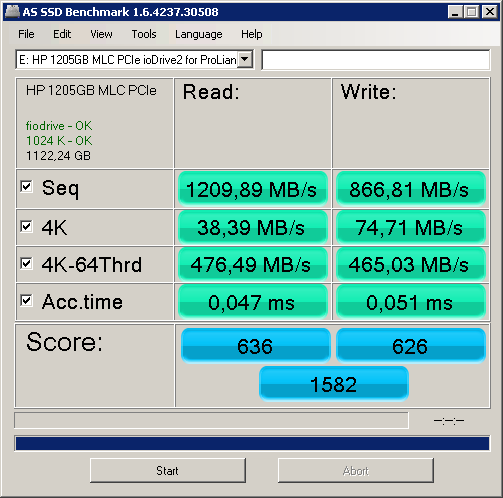

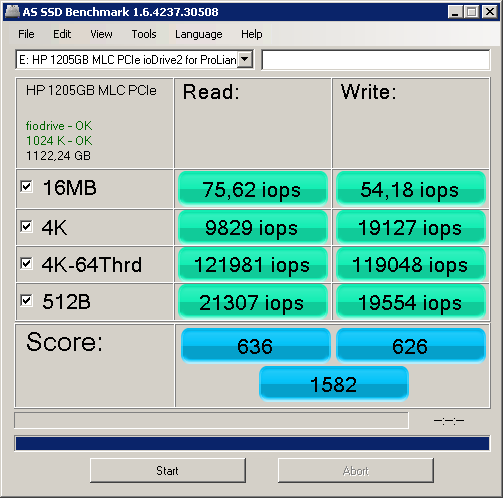

AS SSD Benchmark IOPS
Тестирование Fusion io ioDrive2
AS SSD Benchmark MB/S
Тестирование Fusion io ioDrive2
AS SSD Copy-Benchmark
Тестирование Fusion io ioDrive2

Уже можно сравнить полученные результаты с предшественником ioDrive Duo и увидеть практически двухкратное увеличение производительности. Продолжим с синтетическими тестами:

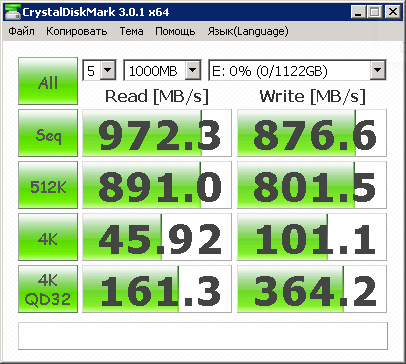

CrystalDiskMark
Тестирование Fusion io ioDrive2

Здесь мы видим 50% прирост производительности при последовательном чтении/записи и при работе с большими блоками в 512k.

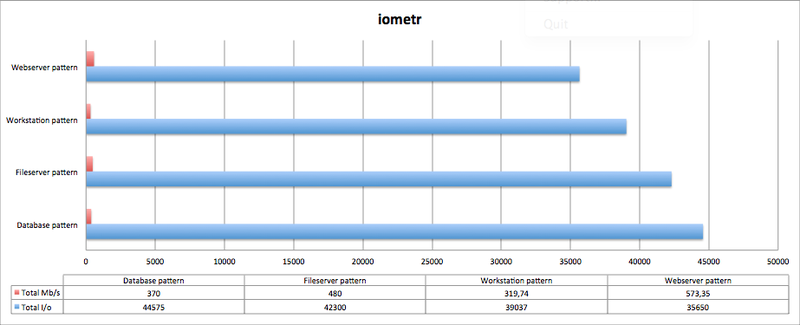

Iometr
Для тестирования был выбран, уже опребованный нами, набор паттернов:

  • Database
  • File Server
  • Workstation
  • Webserver

В качестве результатов были выбраны максимальные, полученные значения при тестировании.
Тестирование Fusion io ioDrive2

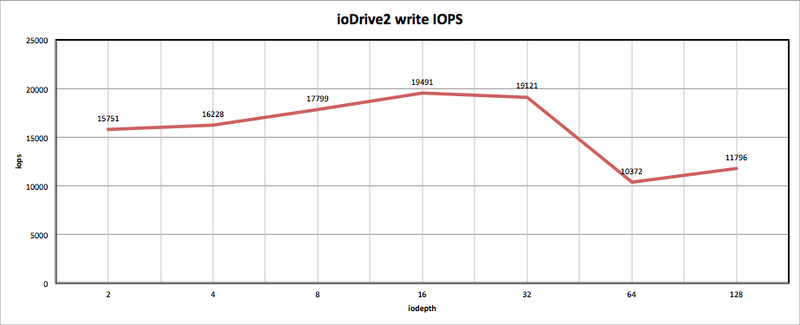

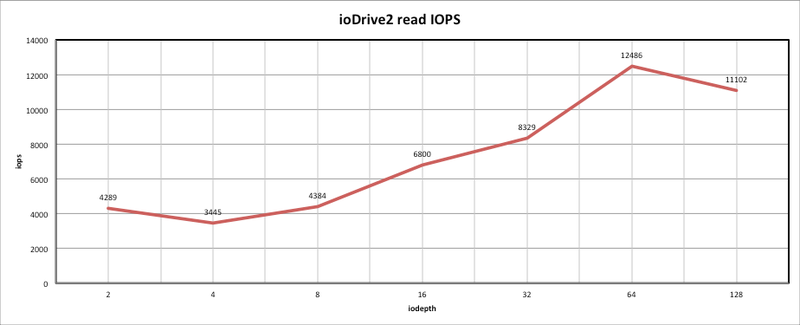

Fio

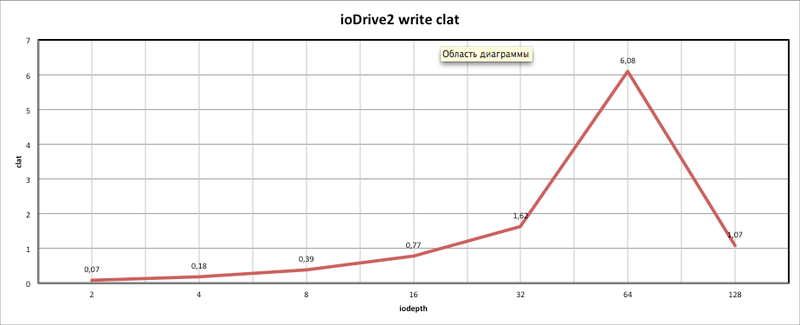

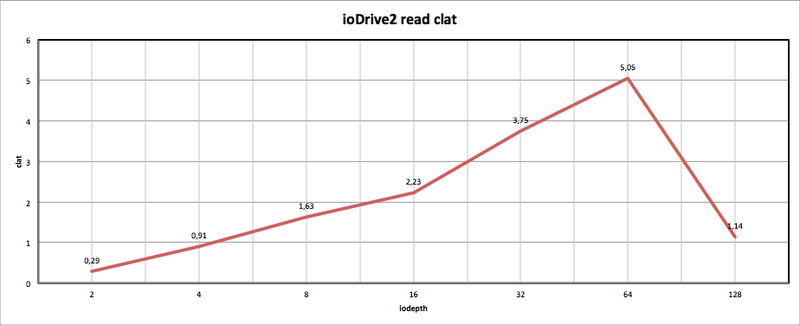

Тест fio в наших обзорах появился после публикации на habrahabr`е статьи «Как правильно мерять производительность диска», которая стала неким эталоном тестирования различных СХД.
Тестирование Fusion io ioDrive2
Тестирование Fusion io ioDrive2
Тестирование Fusion io ioDrive2
Тестирование Fusion io ioDrive2

Для тех кто хочет увидеть все цифры своими глазами, предлагаю лог тестов:

iodepth=2.txt (3 kB)

readtest: (groupid=0, jobs=1): err= 0: pid=1272: Thu Feb 7 09:11:17 2013
read: io=34234MB, bw=17159KB/s, iops=4289, runt=2042984msec
slat (usec): min=4, max=76123, avg=22.70, stdev=27.60
clat (usec): min=1, max=523598, avg=296.87, stdev=1211.17
lat (usec): min=68, max=523636, avg=320.13, stdev=1222.19
clat percentiles (usec):
| 1.00th=[ 56], 5.00th=[ 62], 10.00th=[ 63], 20.00th=[ 67],
| 30.00th=[ 75], 40.00th=[ 78], 50.00th=[ 81], 60.00th=[ 84],
| 70.00th=[ 93], 80.00th=[ 115], 90.00th=[ 231], 95.00th=[ 1512],
| 99.00th=[ 5664], 99.50th=[ 6688], 99.90th=[ 7904], 99.95th=[11072],
| 99.99th=[29824]
bw (KB/s): min= 184, max=75760, per=100.00%, avg=17264.19, stdev=20668.46
lat (usec): 2=0.01%, 20=0.01%, 50=0.11%, 100=74.44%, 250=15.81%
lat (usec): 500=1.60%, 750=1.40%, 1000=0.37%
lat (msec): 2=3.08%, 4=1.44%, 10=1.69%, 20=0.04%, 50=0.01%
lat (msec): 100=0.01%, 250=0.01%, 500=0.01%, 750=0.01%
cpu: usr=2.68%, sys=12.28%, ctx=7690923, majf=269391, minf=96413
IO depths: 1=0.1%, 2=100.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
issued: total=r=8763833/w=0/d=0, short=r=0/w=0/d=0
writetest: (groupid=0, jobs=1): err= 0: pid=1273: Thu Feb 7 09:11:17 2013
write: io=125704MB, bw=63005KB/s, iops=15751, runt=2043030msec
slat (usec): min=5, max=76204, avg=13.32, stdev=14.17
clat (usec): min=2, max=330078, avg=73.19, stdev=632.83
lat (usec): min=27, max=330091, avg=86.90, stdev=636.87
clat percentiles (usec):
| 1.00th=[ 23], 5.00th=[ 27], 10.00th=[ 28], 20.00th=[ 29],
| 30.00th=[ 31], 40.00th=[ 32], 50.00th=[ 34], 60.00th=[ 35],
| 70.00th=[ 36], 80.00th=[ 38], 90.00th=[ 43], 95.00th=[ 50],
| 99.00th=[ 135], 99.50th=[ 3568], 99.90th=[ 7072], 99.95th=[ 7648],
| 99.99th=[13760]
bw (KB/s): min= 197, max=174672, per=100.00%, avg=63411.79, stdev=76086.74
lat (usec): 4=0.01%, 20=0.59%, 50=94.24%, 100=3.79%, 250=0.59%
lat (usec): 500=0.01%, 750=0.02%, 1000=0.02%
lat (msec): 2=0.06%, 4=0.22%, 10=0.43%, 20=0.02%, 50=0.01%
lat (msec): 100=0.01%, 250=0.01%, 500=0.01%
cpu: usr=7.66%, sys=25.35%, ctx=16456563, majf=260237, minf=130862
IO depths: 1=0.1%, 2=100.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
issued: total=r=0/w=32180125/d=0, short=r=0/w=0/d=0

Run status group 0 (all jobs):
READ: io=34234MB, aggrb=17158KB/s, minb=17158KB/s, maxb=17158KB/s, mint=2042984msec, maxt=2042984msec
WRITE: io=125704MB, aggrb=63004KB/s, minb=63004KB/s, maxb=63004KB/s, mint=2043030msec, maxt=2043030msec

Disk stats (read/write):
fioa: ios=8763830/32180122, merge=0/0, ticks=1366258/1005521, in_queue=992386, util=33.54

iodepth=4.txt (2 kB)

readtest: (groupid=0, jobs=1): err= 0: pid=26270: Wed Feb 6 17:46:57 2013
read: io=26865MB, bw=13782KB/s, iops=3445, runt=1996032msec
slat (usec): min=4, max=93411, avg=26.35, stdev=61.61
clat (usec): min=42, max=434738, avg=916.17, stdev=2997.70
lat (usec): min=70, max=434777, avg=943.11, stdev=2999.40
clat percentiles (usec):
| 1.00th=[ 67], 5.00th=[ 78], 10.00th=[ 83], 20.00th=[ 92],
| 30.00th=[ 100], 40.00th=[ 108], 50.00th=[ 118], 60.00th=[ 135],
| 70.00th=[ 175], 80.00th=[ 506], 90.00th=[ 1384], 95.00th=[ 5536],
| 99.00th=[15296], 99.50th=[18816], 99.90th=[30336], 99.95th=[35584],
| 99.99th=[48896]
bw (KB/s): min= 230, max=102144, per=100.00%, avg=13854.58, stdev=21679.39
lat (usec): 50=0.01%, 100=28.88%, 250=47.54%, 500=3.46%, 750=4.38%
lat (usec): 1000=1.71%
lat (msec): 2=6.63%, 4=1.79%, 10=2.75%, 20=2.46%, 50=0.39%
lat (msec): 100=0.01%, 250=0.01%, 500=0.01%
cpu: usr=1.80%, sys=8.62%, ctx=5676226, majf=295816, minf=64814
IO depths: 1=0.1%, 2=0.1%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
issued: total=r=6877537/w=0/d=0, short=r=0/w=0/d=0
writetest: (groupid=0, jobs=1): err= 0: pid=26271: Wed Feb 6 17:46:58 2013
write: io=126535MB, bw=64913KB/s, iops=16228, runt=1996082msec
slat (usec): min=4, max=68903, avg=12.08, stdev=12.62
clat (usec): min=21, max=410639, avg=187.46, stdev=1418.54
lat (usec): min=29, max=410669, avg=199.89, stdev=1419.72
clat percentiles (usec):
| 1.00th=[ 38], 5.00th=[ 43], 10.00th=[ 44], 20.00th=[ 45],
| 30.00th=[ 46], 40.00th=[ 46], 50.00th=[ 46], 60.00th=[ 47],
| 70.00th=[ 48], 80.00th=[ 52], 90.00th=[ 61], 95.00th=[ 74],
| 99.00th=[ 5472], 99.50th=[10816], 99.90th=[19840], 99.95th=[24448],
| 99.99th=[37632]
bw (KB/s): min= 234, max=261816, per=100.00%, avg=65267.74, stdev=104638.82
lat (usec): 50=76.70%, 100=20.89%, 250=0.45%, 500=0.28%, 750=0.08%
lat (usec): 1000=0.28%
lat (msec): 2=0.08%, 4=0.13%, 10=0.56%, 20=0.47%, 50=0.09%
lat (msec): 100=0.01%, 250=0.01%, 500=0.01%
cpu: usr=6.24%, sys=20.44%, ctx=1241588, majf=288943, minf=64983
IO depths: 1=0.1%, 2=0.1%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
issued: total=r=0/w=32393048/d=0, short=r=0/w=0/d=0

Run status group 0 (all jobs):
READ: io=26865MB, aggrb=13782KB/s, minb=13782KB/s, maxb=13782KB/s, mint=1996032msec, maxt=1996032msec
WRITE: io=126535MB, aggrb=64913KB/s, minb=64913KB/s, maxb=64913KB/s, mint=1996082msec, maxt=1996082msec

Disk stats (read/write):
fioa: ios=6877523/32393027, merge=0/0, ticks=1709603/1045836, in_queue=1190418, util=28.45%

iodepth=8.txt (2 kB)

readtest: (groupid=0, jobs=1): err= 0: pid=23180: Wed Feb 6 16:32:33 2013
read: io=31125MB, bw=17537KB/s, iops=4384, runt=1817381msec
slat (usec): min=4, max=46635, avg=26.29, stdev=54.70
clat (usec): min=48, max=447157, avg=1633.76, stdev=5775.74
lat (usec): min=79, max=447179, avg=1660.60, stdev=5777.05
clat percentiles (usec):
| 1.00th=[ 159], 5.00th=[ 179], 10.00th=[ 191], 20.00th=[ 207],
| 30.00th=[ 221], 40.00th=[ 235], 50.00th=[ 253], 60.00th=[ 290],
| 70.00th=[ 604], 80.00th=[ 972], 90.00th=[ 1928], 95.00th=[ 7840],
| 99.00th=[28032], 99.50th=[33024], 99.90th=[51968], 99.95th=[64768],
| 99.99th=[156672]
bw (KB/s): min= 119, max=67200, per=100.00%, avg=17638.27, stdev=25556.94
lat (usec): 50=0.01%, 100=0.01%, 250=48.12%, 500=19.17%, 750=8.89%
lat (usec): 1000=3.99%
lat (msec): 2=10.32%, 4=4.09%, 10=0.70%, 20=2.15%, 50=2.43%
lat (msec): 100=0.10%, 250=0.01%, 500=0.01%
cpu: usr=2.10%, sys=10.26%, ctx=5996516, majf=264239, minf=72080
IO depths: 1=0.1%, 2=0.1%, 4=0.1%, 8=100.0%, 16=0.0%, 32=0.0%, >=64=0.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.1%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
issued: total=r=7968035/w=0/d=0, short=r=0/w=0/d=0
writetest: (groupid=0, jobs=1): err= 0: pid=23181: Wed Feb 6 16:32:33 2013
write: io=126358MB, bw=71199KB/s, iops=17799, runt=1817308msec
slat (usec): min=4, max=46586, avg=12.00, stdev=15.15
clat (usec): min=64, max=497418, avg=396.45, stdev=2909.44
lat (usec): min=72, max=497430, avg=408.79, stdev=2910.65
clat percentiles (usec):
| 1.00th=[ 91], 5.00th=[ 98], 10.00th=[ 101], 20.00th=[ 103],
| 30.00th=[ 104], 40.00th=[ 105], 50.00th=[ 106], 60.00th=[ 107],
| 70.00th=[ 110], 80.00th=[ 116], 90.00th=[ 127], 95.00th=[ 147],
| 99.00th=[11840], 99.50th=[22144], 99.90th=[36096], 99.95th=[42752],
| 99.99th=[68096]
bw (KB/s): min= 132, max=262840, per=100.00%, avg=71623.12, stdev=104914.13
lat (usec): 100=7.53%, 250=88.75%, 500=0.29%, 750=0.92%, 1000=0.36%
lat (msec): 2=0.79%, 4=0.05%, 10=0.22%, 20=0.48%, 50=0.57%
lat (msec): 100=0.03%, 250=0.01%, 500=0.01%
cpu: usr=6.83%, sys=21.93%, ctx=592120, majf=257281, minf=74722
IO depths: 1=0.1%, 2=0.1%, 4=0.1%, 8=100.0%, 16=0.0%, 32=0.0%, >=64=0.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.1%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
issued: total=r=0/w=32347600/d=0, short=r=0/w=0/d=0

Run status group 0 (all jobs):
READ: io=31125MB, aggrb=17537KB/s, minb=17537KB/s, maxb=17537KB/s, mint=1817381msec, maxt=1817381msec
WRITE: io=126358MB, aggrb=71198KB/s, minb=71198KB/s, maxb=71198KB/s, mint=1817308msec, maxt=1817308msec

Disk stats (read/write):
fioa: ios=7968027/32347598, merge=0/0, ticks=3221157/1578678, in_queue=1672519, util=31.56%

iodepth=16.txt (3 kB)

Jobs: 2 (f=2): [rw] [3.7% done] [1608K/1424K/0K /s] [402 /356 /0 iops] [eta 11h:34m:11s]
readtest: (groupid=0, jobs=1): err= 0: pid=20314: Wed Feb 6 15:23:21 2013
read: io=42920MB, bw=27204KB/s, iops=6800, runt=1615603msec
slat (usec): min=4, max=78043, avg=22.41, stdev=43.93
clat (usec): min=67, max=902063, avg=2233.41, stdev=8952.49
lat (usec): min=94, max=902091, avg=2256.34, stdev=8954.33
clat percentiles (usec):
| 1.00th=[ 306], 5.00th=[ 350], 10.00th=[ 382], 20.00th=[ 422],
| 30.00th=[ 454], 40.00th=[ 482], 50.00th=[ 524], 60.00th=[ 620],
| 70.00th=[ 780], 80.00th=[ 1704], 90.00th=[ 2160], 95.00th=[ 2448],
| 99.00th=[49920], 99.50th=[61184], 99.90th=[97792], 99.95th=[117248],
| 99.99th=[166912]
bw (KB/s): min= 19, max=93688, per=100.00%, avg=27333.96, stdev=34656.29
lat (usec): 100=0.01%, 250=0.09%, 500=44.48%, 750=23.93%, 1000=5.03%
lat (msec): 2=13.52%, 4=9.72%, 10=0.19%, 20=0.20%, 50=1.84%
lat (msec): 100=0.91%, 250=0.09%, 500=0.01%, 750=0.01%, 1000=0.01%
cpu: usr=3.02%, sys=13.27%, ctx=6868530, majf=205686, minf=64110
IO depths: 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=100.0%, 32=0.0%, >=64=0.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.1%, 32=0.0%, 64=0.0%, >=64=0.0%
issued: total=r=10987596/w=0/d=0, short=r=0/w=0/d=0
writetest: (groupid=0, jobs=1): err= 0: pid=20315: Wed Feb 6 15:23:21 2013
write: io=123008MB, bw=77968KB/s, iops=19491, runt=1615549msec
slat (usec): min=4, max=77919, avg=12.51, stdev=15.71
clat (usec): min=112, max=813907, avg=774.02, stdev=4696.75
lat (usec): min=137, max=813922, avg=786.88, stdev=4697.77
clat percentiles (usec):
| 1.00th=[ 209], 5.00th=[ 217], 10.00th=[ 221], 20.00th=[ 225],
| 30.00th=[ 227], 40.00th=[ 231], 50.00th=[ 237], 60.00th=[ 241],
| 70.00th=[ 251], 80.00th=[ 262], 90.00th=[ 326], 95.00th=[ 1032],
| 99.00th=[20608], 99.50th=[36608], 99.90th=[61696], 99.95th=[75264],
| 99.99th=[116224]
bw (KB/s): min= 50, max=264272, per=100.00%, avg=78360.68, stdev=98746.21
lat (usec): 250=69.58%, 500=21.53%, 750=1.68%, 1000=2.10%
lat (msec): 2=3.44%, 4=0.07%, 10=0.25%, 20=0.33%, 50=0.81%
lat (msec): 100=0.19%, 250=0.02%, 500=0.01%, 750=0.01%, 1000=0.01%
cpu: usr=7.52%, sys=24.70%, ctx=947303, majf=200590, minf=86409
IO depths: 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=100.0%, 32=0.0%, >=64=0.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.1%, 32=0.0%, 64=0.0%, >=64=0.0%
issued: total=r=0/w=31490162/d=0, short=r=0/w=0/d=0

Run status group 0 (all jobs):
READ: io=42920MB, aggrb=27203KB/s, minb=27203KB/s, maxb=27203KB/s, mint=1615603msec, maxt=1615603msec
WRITE: io=123008MB, aggrb=77967KB/s, minb=77967KB/s, maxb=77967KB/s, mint=1615549msec, maxt=1615549msec

Disk stats (read/write):
fioa: ios=10987556/31490135, merge=0/0, ticks=6927819/3309326, in_queue=3479998, util=38.51%

iodepth=32.txt (3 kB)

readtest: (groupid=0, jobs=1): err= 0: pid=17571: Wed Feb 6 14:08:19 2013
read: io=51223MB, bw=33318KB/s, iops=8329, runt=1574274msec
slat (usec): min=2, max=199530, avg=12.18, stdev=83.08
clat (usec): min=70, max=3926.3K, avg=3750.49, stdev=19681.75
lat (usec): min=86, max=3926.3K, avg=3762.95, stdev=19687.15
clat percentiles (usec):
| 1.00th=[ 386], 5.00th=[ 462], 10.00th=[ 516], 20.00th=[ 660],
| 30.00th=[ 844], 40.00th=[ 964], 50.00th=[ 1080], 60.00th=[ 1720],
| 70.00th=[ 1992], 80.00th=[ 2256], 90.00th=[ 2512], 95.00th=[ 2704],
| 99.00th=[86528], 99.50th=[113152], 99.90th=[254976], 99.95th=[329728],
| 99.99th=[536576]
bw (KB/s): min= 52, max=114504, per=100.00%, avg=33638.01, stdev=43487.39
lat (usec): 100=0.01%, 250=0.01%, 500=8.28%, 750=15.94%, 1000=19.16%
lat (msec): 2=26.73%, 4=26.69%, 10=0.34%, 20=0.25%, 50=0.68%
lat (msec): 100=1.23%, 250=0.58%, 500=0.09%, 750=0.01%, 1000=0.01%
lat (msec): 2000=0.01%, >=2000=0.01%
cpu: usr=2.32%, sys=9.77%, ctx=6302812, majf=178282, minf=83315
IO depths: 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=0.1%, 32=100.0%, >=64=0.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.1%, 64=0.0%, >=64=0.0%
issued: total=r=13112981/w=0/d=0, short=r=0/w=0/d=0
writetest: (groupid=0, jobs=1): err= 0: pid=17572: Wed Feb 6 14:08:19 2013
write: io=117583MB, bw=76485KB/s, iops=19121, runt=1574222msec
slat (usec): min=3, max=199706, avg= 8.97, stdev=46.54
clat (usec): min=38, max=3624.5K, avg=1629.47, stdev=13108.63
lat (usec): min=47, max=3624.5K, avg=1638.67, stdev=13110.83
clat percentiles (usec):
| 1.00th=[ 266], 5.00th=[ 274], 10.00th=[ 282], 20.00th=[ 294],
| 30.00th=[ 310], 40.00th=[ 334], 50.00th=[ 370], 60.00th=[ 414],
| 70.00th=[ 466], 80.00th=[ 612], 90.00th=[ 1624], 95.00th=[ 1944],
| 99.00th=[34560], 99.50th=[77312], 99.90th=[171008], 99.95th=[244736],
| 99.99th=[444416]
bw (KB/s): min= 70, max=411304, per=100.00%, avg=77222.16, stdev=101662.66
lat (usec): 50=0.01%, 100=0.01%, 250=0.07%, 500=74.77%, 750=6.44%
lat (usec): 1000=0.32%
lat (msec): 2=14.73%, 4=2.35%, 10=0.06%, 20=0.09%, 50=0.34%
lat (msec): 100=0.52%, 250=0.25%, 500=0.04%, 750=0.01%, 1000=0.01%
lat (msec): 2000=0.01%, >=2000=0.01%
cpu: usr=4.74%, sys=16.38%, ctx=6184005, majf=177095, minf=74673
IO depths: 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=0.1%, 32=100.0%, >=64=0.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.1%, 64=0.0%, >=64=0.0%
issued: total=r=0/w=30101173/d=0, short=r=0/w=0/d=0

Run status group 0 (all jobs):
READ: io=51223MB, aggrb=33318KB/s, minb=33318KB/s, maxb=33318KB/s, mint=1574274msec, maxt=1574274msec
WRITE: io=117583MB, aggrb=76485KB/s, minb=76485KB/s, maxb=76485KB/s, mint=1574222msec, maxt=1574222msec

Disk stats (read/write):
fioa: ios=13113097/30101167, merge=0/0, ticks=16627330/11698980, in_queue=11738292, util=36.46%

iodepth=64.txt (3 kB)

readtest: (groupid=0, jobs=1): err= 0: pid=17090: Wed Feb 6 12:53:37 2013
read: io=140746MB, bw=49947KB/s, iops=12486, runt=2885517msec
slat (usec): min=2, max=64665, avg=12.31, stdev=41.15
clat (usec): min=115, max=1327.2K, avg=5053.06, stdev=29498.91
lat (usec): min=122, max=1327.2K, avg=5065.67, stdev=29502.49
clat percentiles (usec):
| 1.00th=[ 524], 5.00th=[ 684], 10.00th=[ 772], 20.00th=[ 884],
| 30.00th=[ 964], 40.00th=[ 1032], 50.00th=[ 1096], 60.00th=[ 1192],
| 70.00th=[ 1432], 80.00th=[ 2040], 90.00th=[ 2512], 95.00th=[ 3248],
| 99.00th=[187392], 99.50th=[230400], 99.90th=[342016], 99.95th=[419840],
| 99.99th=[634880]
bw (KB/s): min= 66, max=253960, per=100.00%, avg=50307.56, stdev=80694.65
lat (usec): 250=0.01%, 500=0.65%, 750=7.82%, 1000=27.21%
lat (msec): 2=43.49%, 4=17.37%, 10=1.48%, 20=0.05%, 50=0.08%
lat (msec): 100=0.28%, 250=1.23%, 500=0.32%, 750=0.02%, 1000=0.01%
lat (msec): 2000=0.01%
cpu: usr=2.95%, sys=12.40%, ctx=28019337, majf=401978, minf=142817
IO depths: 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=0.1%, 32=0.1%, >=64=100.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.1%, >=64=0.0%
issued: total=r=36031041/w=0/d=0, short=r=0/w=0/d=0
writetest: (groupid=0, jobs=1): err= 0: pid=17091: Wed Feb 6 12:53:37 2013
write: io=116908MB, bw=41489KB/s, iops=10372, runt=2885455msec
slat (usec): min=2, max=64713, avg= 9.19, stdev=23.68
clat (usec): min=23, max=1392.8K, avg=6089.22, stdev=31651.84
lat (usec): min=41, max=1392.8K, avg=6098.65, stdev=31654.10
clat percentiles (usec):
| 1.00th=[ 572], 5.00th=[ 644], 10.00th=[ 700], 20.00th=[ 772],
| 30.00th=[ 844], 40.00th=[ 932], 50.00th=[ 1208], 60.00th=[ 1608],
| 70.00th=[ 2224], 80.00th=[ 2768], 90.00th=[ 3568], 95.00th=[ 4832],
| 99.00th=[193536], 99.50th=[232448], 99.90th=[354304], 99.95th=[436224],
| 99.99th=[643072]
bw (KB/s): min= 30, max=295456, per=100.00%, avg=41763.22, stdev=66601.96
lat (usec): 50=0.01%, 100=0.01%, 250=0.01%, 500=0.10%, 750=16.37%
lat (usec): 1000=27.80%
lat (msec): 2=22.19%, 4=25.57%, 10=5.46%, 20=0.06%, 50=0.12%
lat (msec): 100=0.37%, 250=1.59%, 500=0.33%, 750=0.02%, 1000=0.01%
lat (msec): 2000=0.01%
cpu: usr=2.60%, sys=8.97%, ctx=13311550, majf=404077, minf=151007
IO depths: 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=0.1%, 32=0.1%, >=64=100.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.1%, >=64=0.0%
issued: total=r=0/w=29928361/d=0, short=r=0/w=0/d=0

Run status group 0 (all jobs):
READ: io=140746MB, aggrb=49947KB/s, minb=49947KB/s, maxb=49947KB/s, mint=2885517msec, maxt=2885517msec
WRITE: io=116908MB, aggrb=41488KB/s, minb=41488KB/s, maxb=41488KB/s, mint=2885455msec, maxt=2885455msec

Disk stats (read/write):
fioa: ios=36030985/29928332, merge=0/0, ticks=36574787/43511582, in_queue=43280929, util=28.05%

iodepth=128.txt (3 kB)

readtest: (groupid=0, jobs=1): err= 0: pid=4391: Thu Feb 7 10:33:04 2013
read: io=116497MB, bw=44411KB/s, iops=11102, runt=2686108msec
slat (usec): min=4, max=283206, avg=19.25, stdev=89.56
clat (usec): min=211, max=3040.6K, avg=11442.21, stdev=60229.01
lat (usec): min=241, max=3040.7K, avg=11461.96, stdev=60234.42
clat percentiles (usec):
| 1.00th=[ 1960], 5.00th=[ 2320], 10.00th=[ 2544], 20.00th=[ 2800],
| 30.00th=[ 2960], 40.00th=[ 3088], 50.00th=[ 3216], 60.00th=[ 3344],
| 70.00th=[ 3472], 80.00th=[ 3696], 90.00th=[ 4192], 95.00th=[ 4832],
| 99.00th=[403456], 99.50th=[473088], 99.90th=[618496], 99.95th=[716800],
| 99.99th=[1105920]
bw (KB/s): min= 7, max=163808, per=100.00%, avg=44697.18, stdev=69457.02
lat (usec): 250=0.01%, 750=0.01%, 1000=0.01%
lat (msec): 2=1.24%, 4=86.07%, 10=10.35%, 20=0.08%, 50=0.08%
lat (msec): 100=0.09%, 250=0.39%, 500=1.32%, 750=0.32%, 1000=0.03%
lat (msec): 2000=0.01%, >=2000=0.01%
cpu: usr=4.24%, sys=17.26%, ctx=19748583, majf=381996, minf=117598
IO depths: 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=0.1%, 32=0.1%, >=64=100.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.1%
issued: total=r=29823140/w=0/d=0, short=r=0/w=0/d=0
writetest: (groupid=0, jobs=1): err= 0: pid=4392: Thu Feb 7 10:33:04 2013
write: io=123778MB, bw=47188KB/s, iops=11796, runt=2686057msec
slat (usec): min=4, max=410883, avg=14.17, stdev=84.54
clat (usec): min=124, max=2139.5K, avg=10773.34, stdev=53260.36
lat (usec): min=153, max=2139.5K, avg=10787.94, stdev=53262.99
clat percentiles (usec):
| 1.00th=[ 1784], 5.00th=[ 1944], 10.00th=[ 2024], 20.00th=[ 2160],
| 30.00th=[ 2288], 40.00th=[ 2704], 50.00th=[ 2832], 60.00th=[ 2928],
| 70.00th=[ 3344], 80.00th=[ 4448], 90.00th=[ 5536], 95.00th=[ 6112],
| 99.00th=[350208], 99.50th=[415744], 99.90th=[544768], 99.95th=[634880],
| 99.99th=[962560]
bw (KB/s): min= 27, max=259280, per=100.00%, avg=47471.80, stdev=72490.85
lat (usec): 250=0.01%
lat (msec): 2=8.35%, 4=68.91%, 10=19.91%, 20=0.15%, 50=0.23%
lat (msec): 100=0.22%, 250=0.63%, 500=1.44%, 750=0.14%, 1000=0.02%
lat (msec): 2000=0.01%, >=2000=0.01%
cpu: usr=4.51%, sys=15.40%, ctx=10917747, majf=379874, minf=152643
IO depths: 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=0.1%, 32=0.1%, >=64=100.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.1%
issued: total=r=0/w=31687117/d=0, short=r=0/w=0/d=0

Run status group 0 (all jobs):
READ: io=116497MB, aggrb=44410KB/s, minb=44410KB/s, maxb=44410KB/s, mint=2686108msec, maxt=2686108msec
WRITE: io=123778MB, aggrb=47187KB/s, minb=47187KB/s, maxb=47187KB/s, mint=2686057msec, maxt=2686057msec

Disk stats (read/write):
fioa: ios=29823127/31687097, merge=0/0, ticks=36457022/56877685, in_queue=56655086, util=29.92%.txt

И последний, лишь в этом тестировании, но не по значимости
SQLIO Random Reads Test iops
Тестирование Fusion io ioDrive2

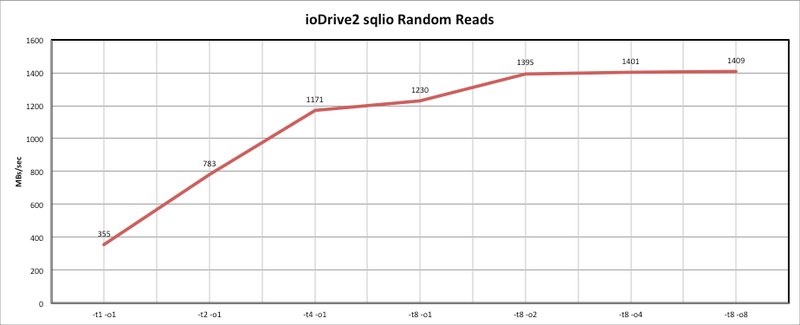

SQLIO Random Reads Test mbps
Тестирование Fusion io ioDrive2

SQLIO Random Writes Test iops
Тестирование Fusion io ioDrive2

SQLIO Random Writes Test mbps
Тестирование Fusion io ioDrive2

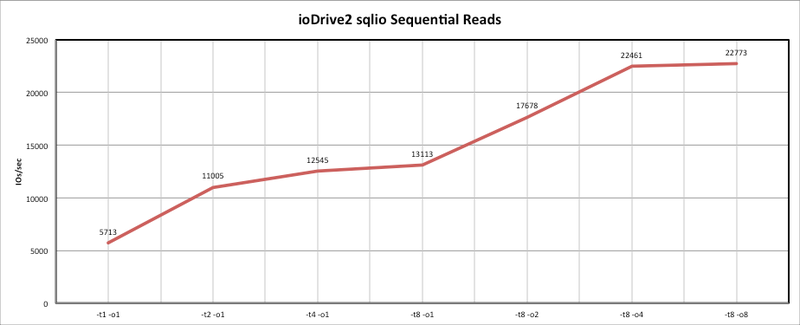

SQLIO Sequential Reads Test iops
Тестирование Fusion io ioDrive2

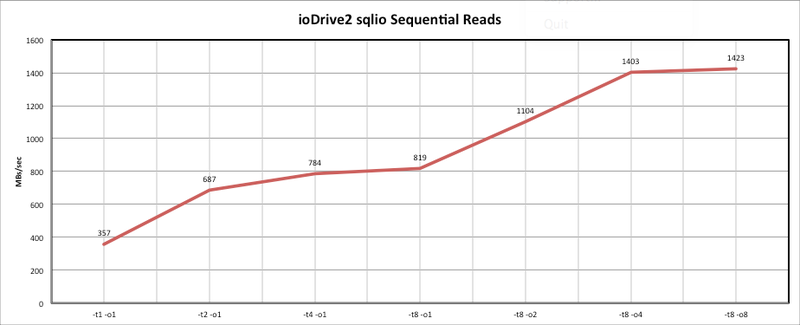

SQLIO Sequential Reads Test mbps
Тестирование Fusion io ioDrive2

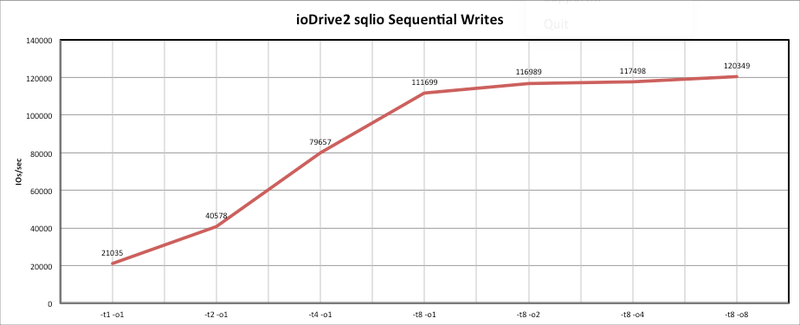

SQLIO Sequential Writes Test iops
Тестирование Fusion io ioDrive2

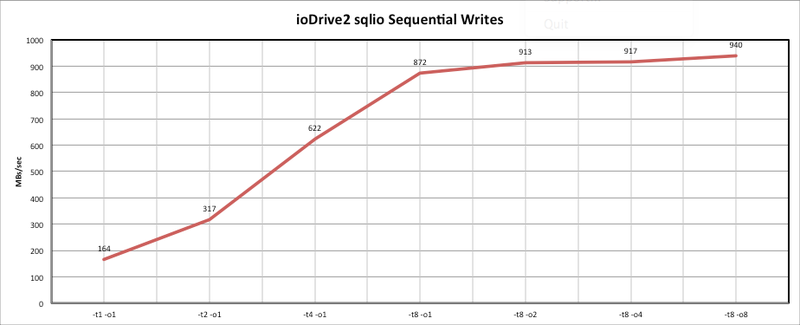

SQLIO Sequential Writes Test mbps
Тестирование Fusion io ioDrive2

Опять-таки для любителей информации в текстовом варианте, предлагаю логи тестов:

Random Reads Test.txt (5 kB)

E:sqlio.exe -BH -kR -frandom -t1 -o1 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 1 thread (0) using mask 0x0 (0)
1 thread reading for 600 secs from file e:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 5690.59
MBs/sec: 355.66

E:sqlio.exe -BH -kR -frandom -t2 -o1 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 2 threads (0-1) using mask 0x0 (0)
2 threads reading for 600 secs from file e:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 12537.13
MBs/sec: 783.57

E:sqlio.exe -BH -kR -frandom -t4 -o1 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 4 threads (0-3) using mask 0x0 (0)
4 threads reading for 600 secs from file e:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 18749.28
MBs/sec: 1171.83

E:sqlio.exe -BH -kR -frandom -t8 -o1 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads reading for 600 secs from file e:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 19686.22
MBs/sec: 1230.38

E:sqlio.exe -BH -kR -frandom -t8 -o2 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads reading for 600 secs from file e:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 2 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 22332.76
MBs/sec: 1395.79

E:sqlio.exe -BH -kR -frandom -t8 -o4 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads reading for 600 secs from file e:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 4 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 22416.67
MBs/sec: 1401.04

E:sqlio.exe -BH -kR -frandom -t8 -o8 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads reading for 600 secs from file e:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 8 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 22558.90
MBs/sec: 1409.93

E:sqlio.exe -BH -kR -frandom -t8 -o16 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads reading for 600 secs from file e:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 16 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 22571.73
MBs/sec: 1410.73

E:sqlio.exe -BH -kR -frandom -t8 -o32 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads reading for 600 secs from file e:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 32 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 22572.42
MBs/sec: 1410.77

E:sqlio.exe -BH -kR -frandom -t8 -o64 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads reading for 600 secs from file e:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 64 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 22572.59
MBs/sec: 1410.78

Random Writes Test.txt (4 kB)

E:sqlio.exe -BH -kW -frandom -t1 -o1 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 1 thread (0) using mask 0x0 (0)
1 thread writing for 600 secs to file e:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 8547.96
MBs/sec: 534.24

E:sqlio.exe -BH -kW -frandom -t2 -o1 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 2 threads (0-1) using mask 0x0 (0)
2 threads writing for 600 secs to file e:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 14972.08
MBs/sec: 935.75

E:sqlio.exe -BH -kW -frandom -t4 -o1 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 4 threads (0-3) using mask 0x0 (0)
4 threads writing for 600 secs to file e:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 14946.20
MBs/sec: 934.13

E:sqlio.exe -BH -kW -frandom -t8 -o1 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads writing for 600 secs to file e:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 14914.31
MBs/sec: 932.14

E:sqlio.exe -BH -kW -frandom -t8 -o2 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads writing for 600 secs to file e:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 2 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 15007.10
MBs/sec: 937.94

E:sqlio.exe -BH -kW -frandom -t8 -o4 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads writing for 600 secs to file e:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 4 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 15031.48
MBs/sec: 939.46

E:sqlio.exe -BH -kW -frandom -t8 -o8 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads writing for 600 secs to file e:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 8 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 15054.59
MBs/sec: 940.91

E:sqlio.exe -BH -kW -frandom -t8 -o16 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads writing for 600 secs to file e:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 16 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 15106.66
MBs/sec: 944.16

Sequential Reads Test.txt (6 kB)

E:sqlio.exe -BH -kR -fsequential -t1 -o1 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 1 thread (0) using mask 0x0 (0)
1 thread reading for 600 secs from file e:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
size of file e:testfile.dat needs to be: 85899345920 bytes
current file size: 0 bytes
need to expand by: 85899345920 bytes
expanding e:testfile.dat… done.
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 5713.29
MBs/sec: 357.08

E:sqlio.exe -BH -kR -fsequential -t2 -o1 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 2 threads (0-1) using mask 0x0 (0)
2 threads reading for 600 secs from file e:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 11005.13
MBs/sec: 687.82

E:sqlio.exe -BH -kR -fsequential -t4 -o1 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 4 threads (0-3) using mask 0x0 (0)
4 threads reading for 600 secs from file e:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 12545.57
MBs/sec: 784.09

E:sqlio.exe -BH -kR -fsequential -t8 -o1 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads reading for 600 secs from file e:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 13113.38
MBs/sec: 819.58

E:sqlio.exe -BH -kR -fsequential -t8 -o2 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads reading for 600 secs from file e:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 2 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 17678.70
MBs/sec: 1104.91

E:sqlio.exe -BH -kR -fsequential -t8 -o4 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads reading for 600 secs from file e:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 4 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 22461.32
MBs/sec: 1403.83

E:sqlio.exe -BH -kR -fsequential -t8 -o8 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads reading for 600 secs from file e:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 8 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 22773.68
MBs/sec: 1423.35

E:sqlio.exe -BH -kR -fsequential -t8 -o16 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads reading for 600 secs from file e:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 16 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 22780.01
MBs/sec: 1423.75

E:sqlio.exe -BH -kR -fsequential -t8 -o32 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads reading for 600 secs from file e:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 32 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 22773.12
MBs/sec: 1423.32

E:sqlio.exe -BH -kR -fsequential -t8 -o64 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads reading for 600 secs from file e:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 64 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 22774.44
MBs/sec: 1423.40

E:sqlio.exe -BH -kR -fsequential -t8 -o128 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads reading for 600 secs from file e:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 128 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 22773.53
MBs/sec: 1423.34

Sequential Writes Test.txt (5 kB)

E:sqlio.exe -BH -kW -fsequential -t1 -o1 -s600 -b8 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 1 thread (0) using mask 0x0 (0)
1 thread writing for 600 secs to file e:testfile.dat
using 8KB sequential IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 21035.64
MBs/sec: 164.34

E:sqlio.exe -BH -kW -fsequential -t2 -o1 -s600 -b8 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 2 threads (0-1) using mask 0x0 (0)
2 threads writing for 600 secs to file e:testfile.dat
using 8KB sequential IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 40578.72
MBs/sec: 317.02

E:sqlio.exe -BH -kW -fsequential -t4 -o1 -s600 -b8 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 4 threads (0-3) using mask 0x0 (0)
4 threads writing for 600 secs to file e:testfile.dat
using 8KB sequential IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 79657.20
MBs/sec: 622.32

E:sqlio.exe -BH -kW -fsequential -t8 -o1 -s600 -b8 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads writing for 600 secs to file e:testfile.dat
using 8KB sequential IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 111699.03
MBs/sec: 872.64

E:sqlio.exe -BH -kW -fsequential -t8 -o2 -s600 -b8 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads writing for 600 secs to file e:testfile.dat
using 8KB sequential IOs
enabling multiple I/Os per thread with 2 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 116989.70
MBs/sec: 913.98

E:sqlio.exe -BH -kW -fsequential -t8 -o4 -s600 -b8 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads writing for 600 secs to file e:testfile.dat
using 8KB sequential IOs
enabling multiple I/Os per thread with 4 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 117498.66
MBs/sec: 917.95

E:sqlio.exe -BH -kW -fsequential -t8 -o8 -s600 -b8 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads writing for 600 secs to file e:testfile.dat
using 8KB sequential IOs
enabling multiple I/Os per thread with 8 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 120349.05
MBs/sec: 940.22

E:sqlio.exe -BH -kW -fsequential -t8 -o16 -s600 -b8 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads writing for 600 secs to file e:testfile.dat
using 8KB sequential IOs
enabling multiple I/Os per thread with 16 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 115321.86
MBs/sec: 900.95

E:sqlio.exe -BH -kW -fsequential -t8 -o32 -s600 -b8 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads writing for 600 secs to file e:testfile.dat
using 8KB sequential IOs
enabling multiple I/Os per thread with 32 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 119766.92
MBs/sec: 935.67

E:sqlio.exe -BH -kW -fsequential -t8 -o64 -s600 -b8 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file e:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads writing for 600 secs to file e:testfile.dat
using 8KB sequential IOs
enabling multiple I/Os per thread with 64 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 81920 MB for file: e:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 119961.98
MBs/sec: 937.20

Теперь немного слов о ПО, идущем в комплекте. Тут по прежнему есть 2 варианта: Dell IO Manager и HP IO Accelerator Management Server. Я, уже по привычке, пользуюсь web-интерфейсом от HP, он не притерпел никаких изменений по сравнению с версией идущей с ioDrive Duo. Настройка, перепрошивка, подключение дисков, информация об оибках и т.д. прекрасно представлены, с утилитой удобно и просто работать. Отдельно хотелось бы коснуться темы перепрошивки — в тесте ioDrive Duo мы лично уже убедились что от прошивки зависит очень многое, в том числе и скоростные характеристики устройства, но тут есть и обратная сторона. При обновлении драйверов для устройства — необходимо каждый раз перепрошивать карту прошивкой, идущей в комплекте с данным драйвером. Процесс этот конечно не сложный, но времязатратный (для моделей большого объёма), и что самое главное — после перепрошивки карты форматируется. Этот не совсем очевидный момент может сыграть большую роль при выборе устройства. От себя хочу добавить что при установке карты под linux, мне пришлось достаточно освновательно поиграться с драйверами и прошивками, прежде чем удалось заставить устройство работать. И хоть процесс установки и настройки не такой уж и сложный — может занять определённое кол-во времени. Существует возможность работы карты в двух вариантах: через стандартный менеджер устройств linux — udev, либо запуская драйвер карты как сервис.
На этом хочется закончить сегодняшнее тестирование. Я считаю что обновлённая линейка карт ioDrive вполне удачна, она имеет заметное преимущество перед картами предыдущего поколения, компания постоянно работает над прошивками и драйверами к своим устройствам, выпускает новые модели (за обзором которых мы конечно охотимся очень активно, но карты приезжают к нам с некоторым запозданием) и работает над развитием технологий. Многие компании уже обратили внимание и на саму технологию PCI-E SSD и на решения от компании Fusion-io и активно внедряют их в своей инфраструктуре.

Напоминаю, что вы можете получить в demo данно карту, или мы предоставим удалённый сервер с установленной платой, сконфигурированный для ваших целей и вы сможете провести тестирование удалённо. Для приобретения Fusion io или запроса demo просьба обращаться к руководителю направления Алексею Котову.

Автор: Server_Unit

Источник

Поделиться

* - обязательные к заполнению поля
