Мы продолжаем знакомить вас с различными PCI-E SSD устройствами, которые появляются на рынке всё чаще, что не может не радовать конечного покупателя, ведь чем выше конкуренция, тем ниже стоимость, да и каждый производитель пытается как-то выделить свой продукт на фоне остальных. Сегодня к нам на тест попала карта Huawei Tecal ES3000, как показало наше общение — карта имеет ряд интересных решений, а так же она показала себя крайне хорошо в тестах, при сравнении с конкурентами. Но сначала несколько слов о самой карте и её «фишках».

Huawei Tecal ES3000

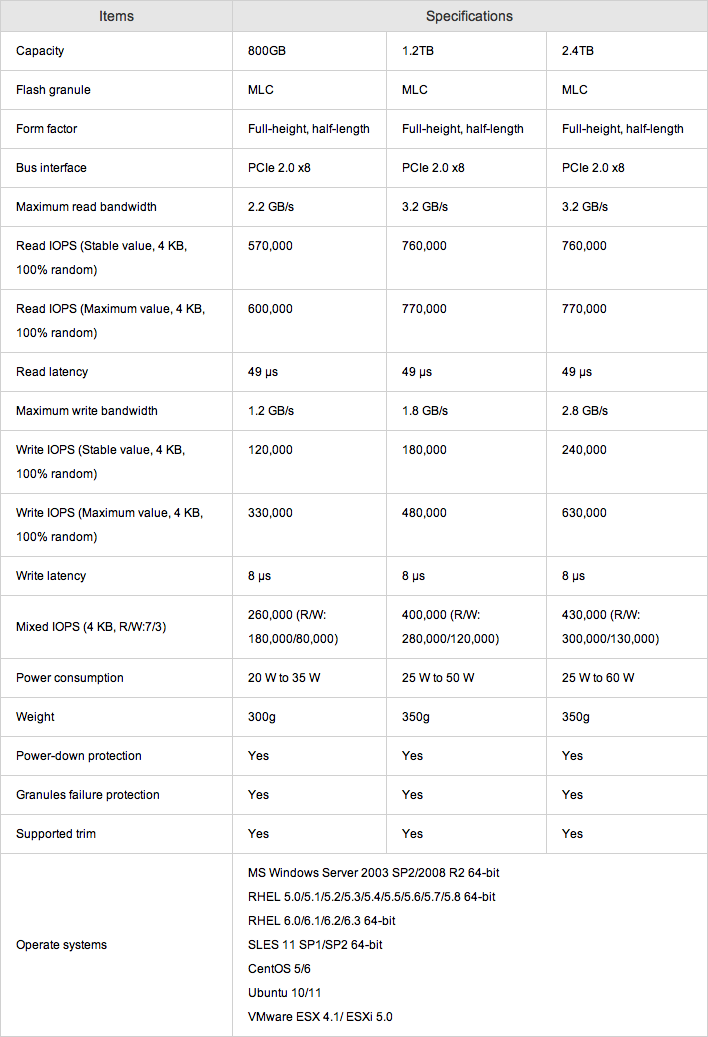

Для начала обратимся к спецификациям, заявленными производителем

Huawei Tecal ES3000

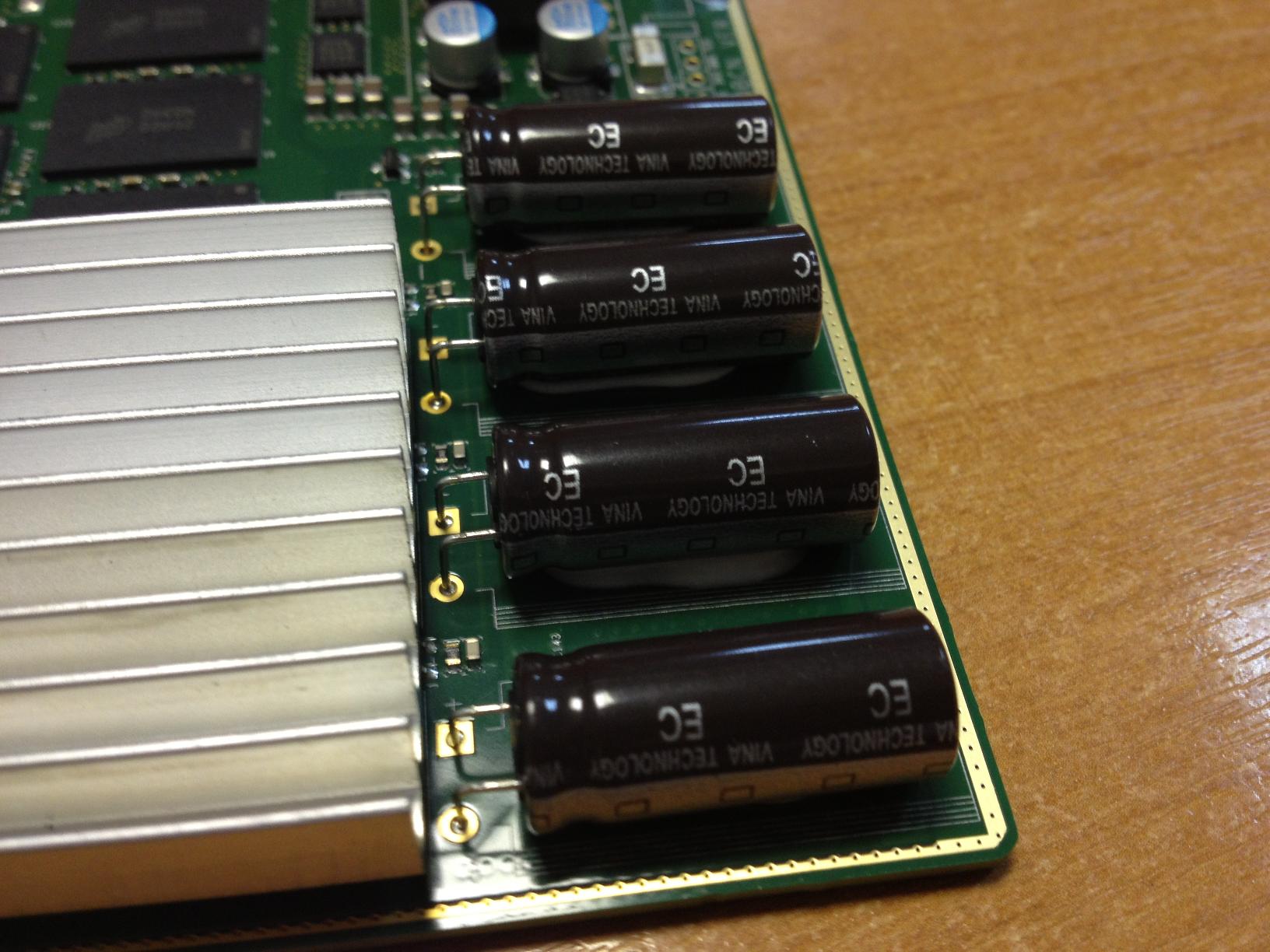

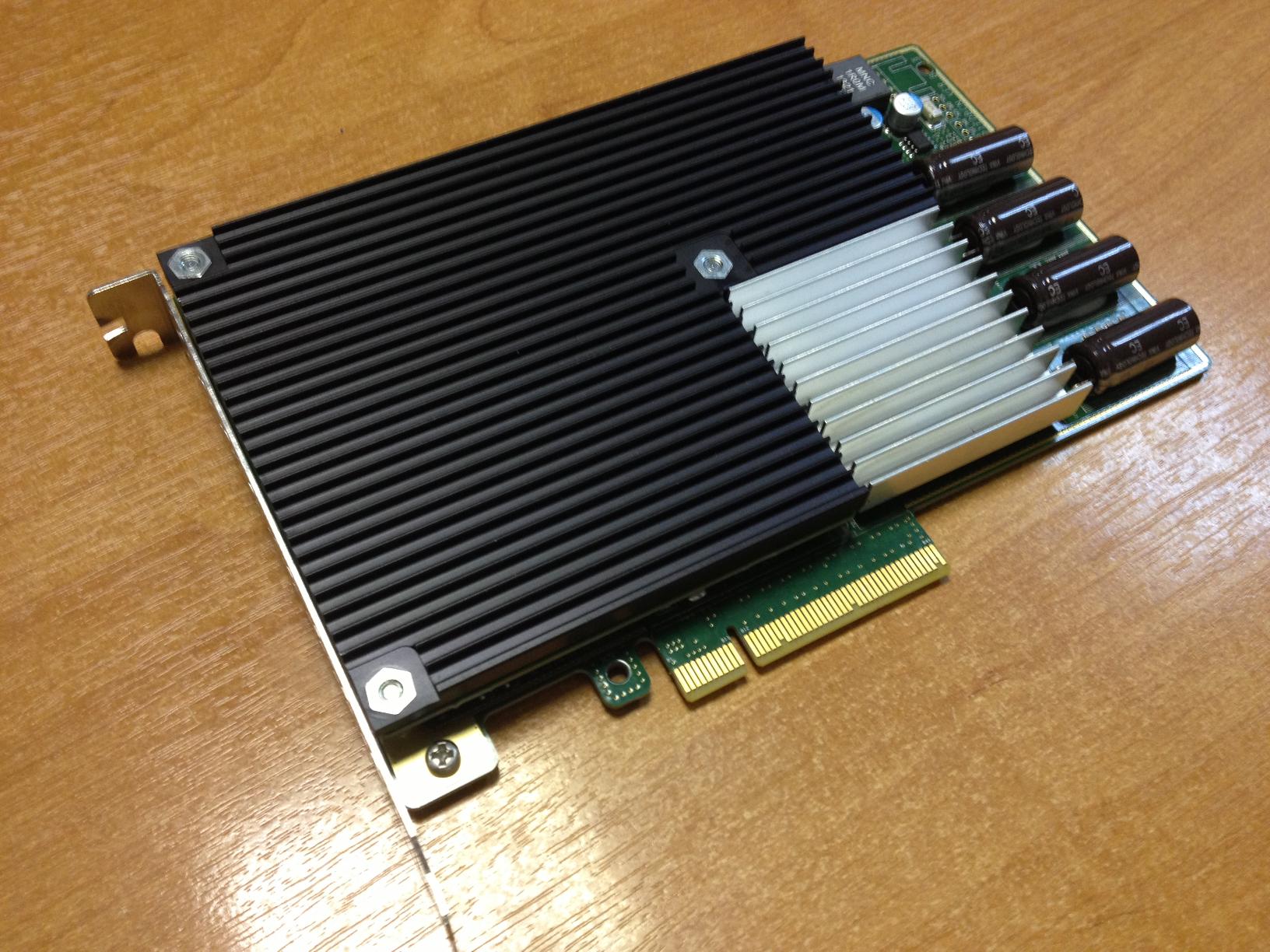

Первое, что бросается в глаза при взгляде на карту — четыре конденсатора, которые предназначены для сохранения данных в случае пропадания питания на сервере, время разряда которых около 1 секунды, что превышает 100мс, необходимые для очистки данных из буфера.

Huawei Tecal ES3000

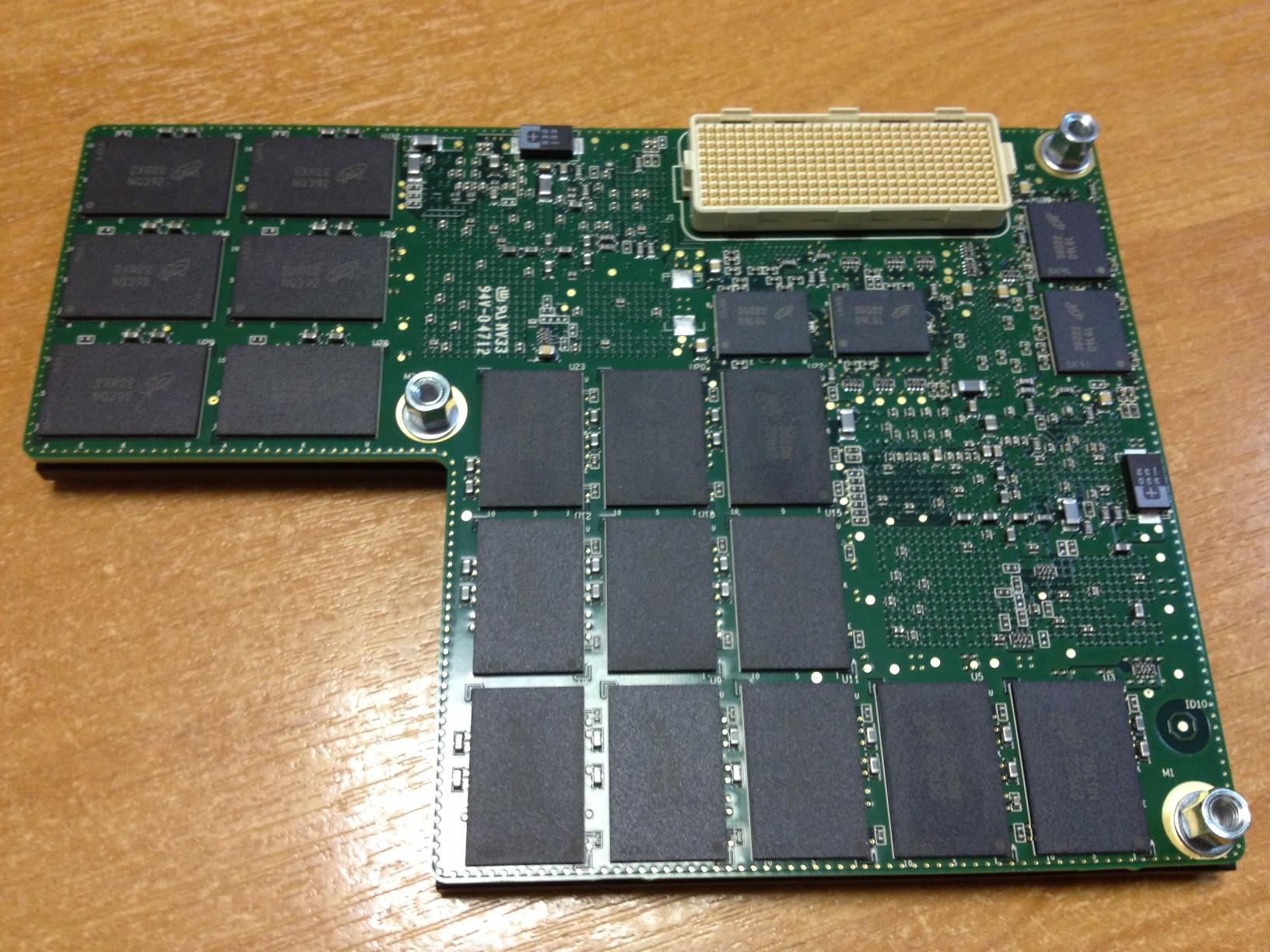

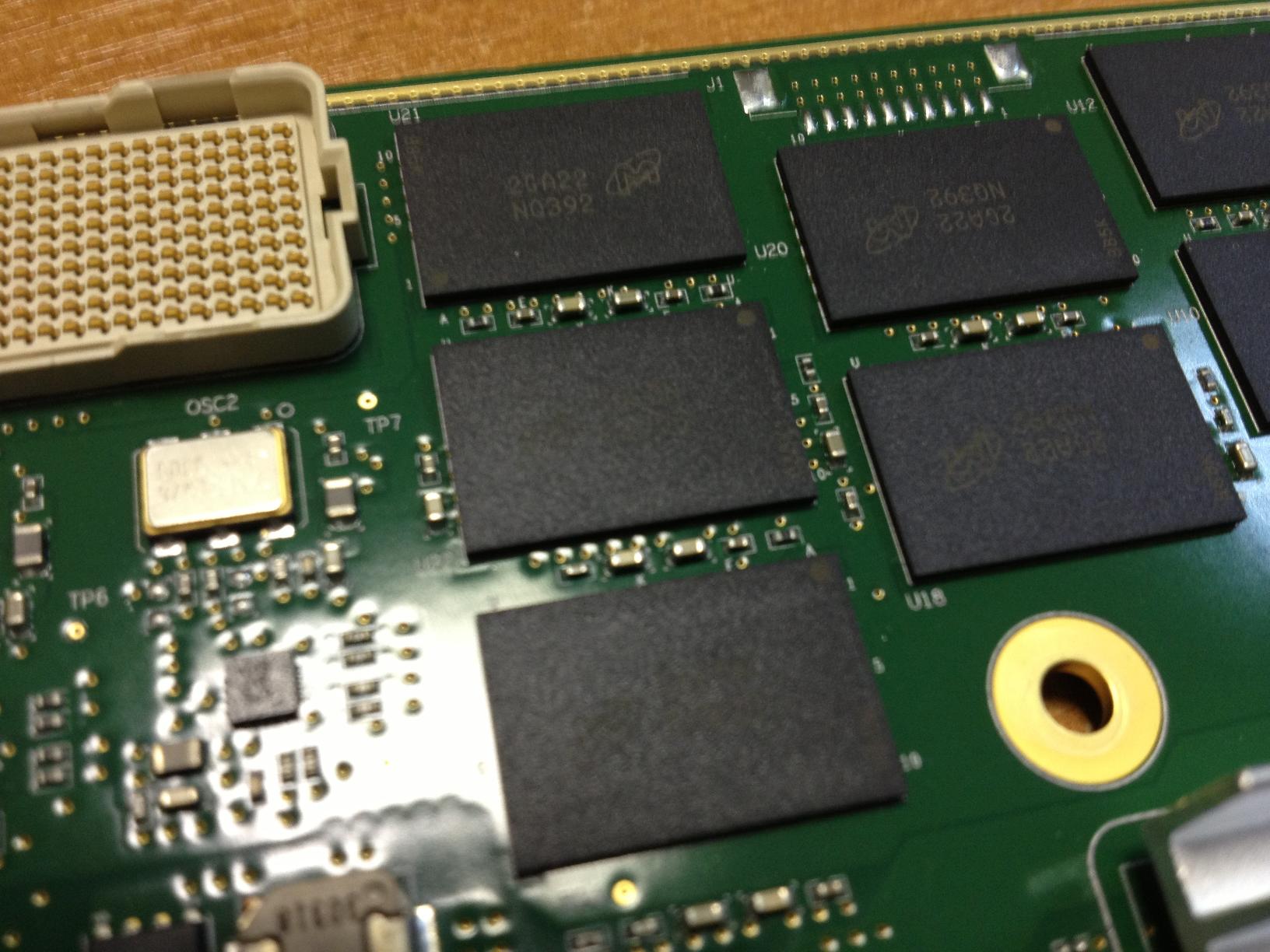

Особенностью является и техническое исполнение карты — она содержит три FPGA, которые располагаются на двух платах. Первая плата несёт на себе интерфейс PCI-E, один контроллер и набор памяти, а так же конденсаторы, обеспечивающие защиту данных в случае отключения питания. Вторая плата содержит на себе ещё 2 контроллера и два набора памяти.

Huawei Tecal ES3000

Плата предоставляет пользователю единый раздел, состоящий из этих «наборов» памяти и нет необходимости использоват soft-raid, как это пришлось бы делать в случае с ioDrive 2 Duo, что бы получить максимальный объём. На карте используется память производства Micron.

Huawei Tecal ES3000

Помимо этого, в карте используются технологии ECC и RAID5 для исправления ошибок, что позволяет продлить срок жизни накопителя. В зависимости от объёма накопителя, производитель гарантирует объём записи равный 6.4PB, 9.5PB и 19.1PB соответственно для карт объёмом 800ГБ, 1.2ТБ и 2.4TB. Также карта поддерживает технологию TRIM.

После знакомства с теоретической частью, у нас уже чесали руки поскорее установить плату в наш тестовый сервер и проверить — что же она может на практике, поэтому переходим к самому интересному — тесты.

Конфигурация тестового стенда у нас осталась прежней:
Платформа — HP ProLiant DL380 G7
Процессор — Xeon E5606
Память — 8 Гб
Жесткие диски — 3xSAS 146Гб 10k

Набор тестов также не претерпел каких-либо изменений, за исключение того, что карту не удалось проверить при помощи AS SSD Benchmark, он напрочь отказывался работать дальше после теста последовательной записи/чтения. А в будущем мы планируем расширить наши обзоры ещё при помощи Sysbench fileio.

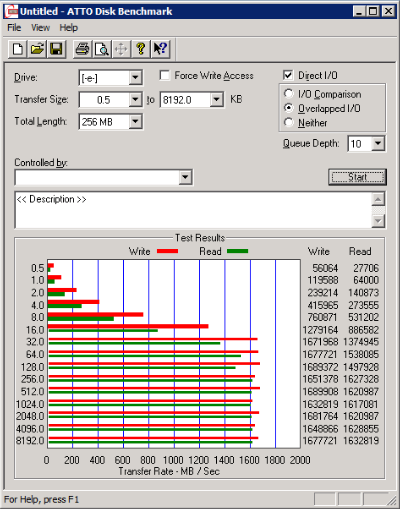

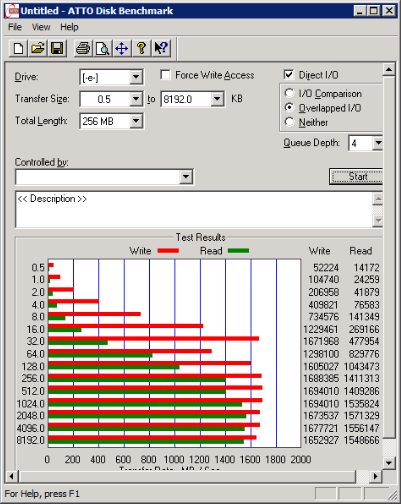

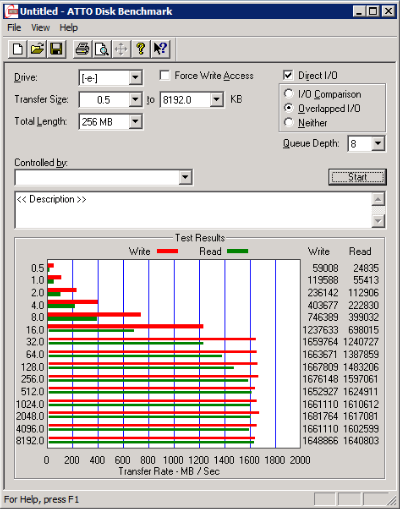

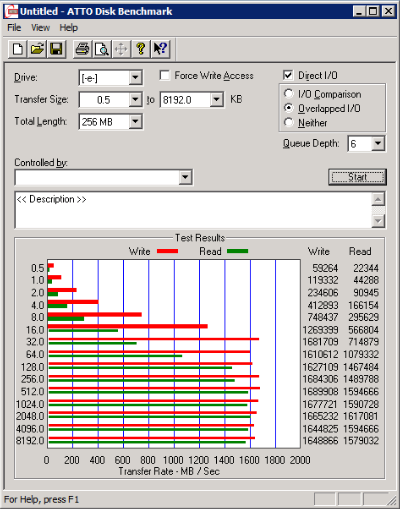

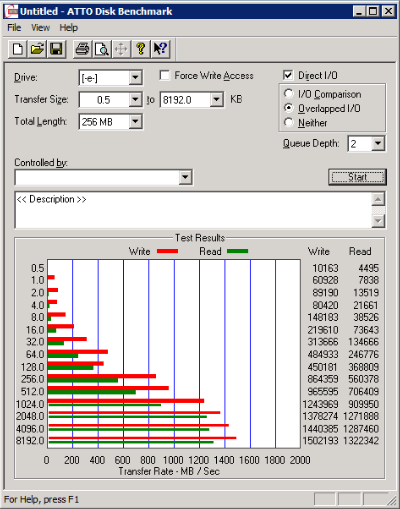

ATTO Disk Benchmark
Мы проводили тестирование с параметрами:
Total Length = 256 Mb
Queue Depth = 2-10

Huawei Tecal ES3000

Huawei Tecal ES3000

Huawei Tecal ES3000

Huawei Tecal ES3000

Huawei Tecal ES3000

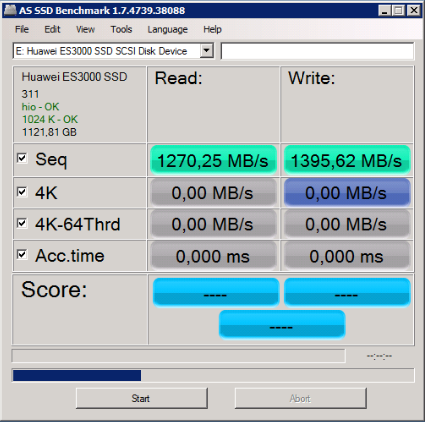

AS SSD Benchmark

Huawei Tecal ES3000

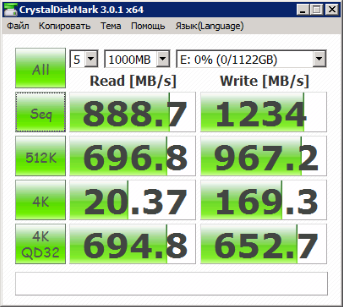

CrystalDiskMark

Huawei Tecal ES3000

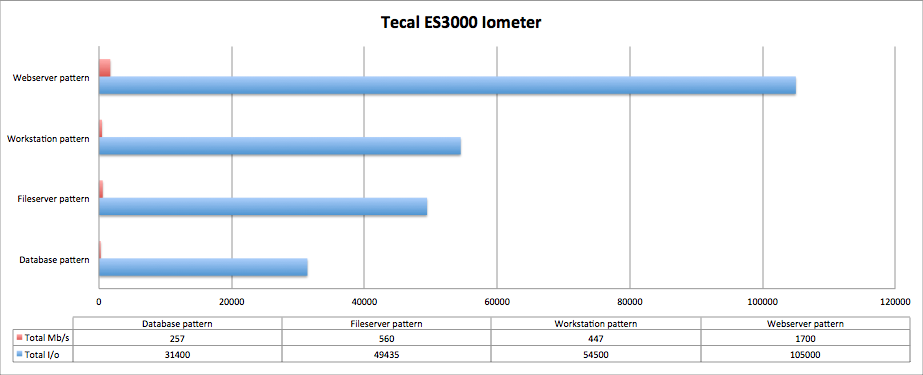

Iometer
Для тестирования был выбран уже опробованный нами набор паттернов:

  • Database
  • File Server
  • Workstation
  • Webserver

В качестве результатов были выбраны максимальные полученные значения при тестировании.

Huawei Tecal ES3000

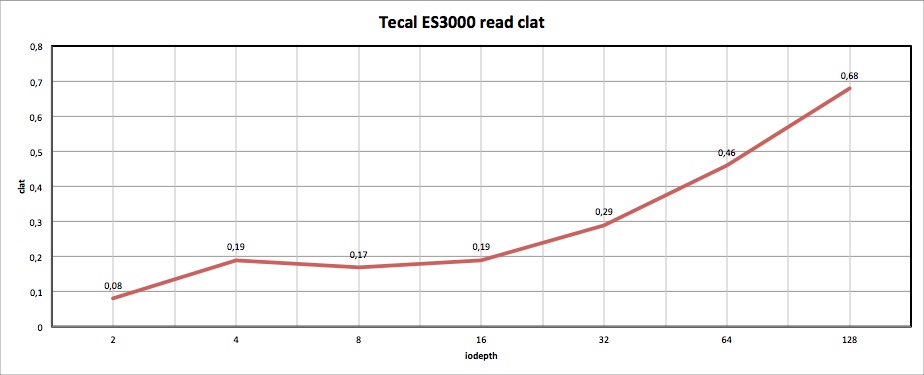

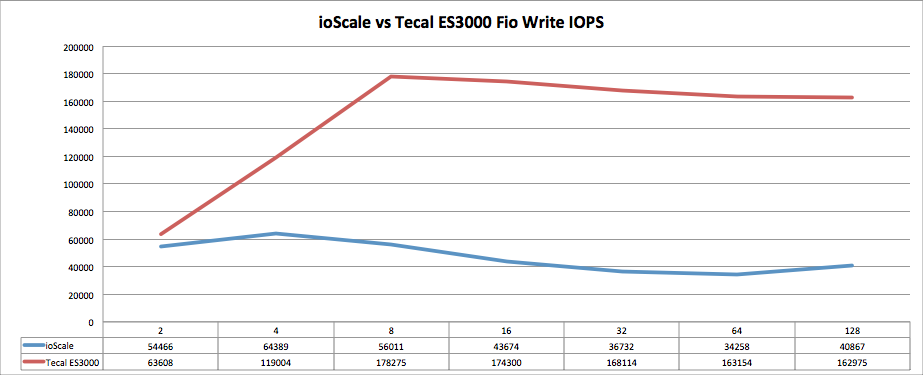

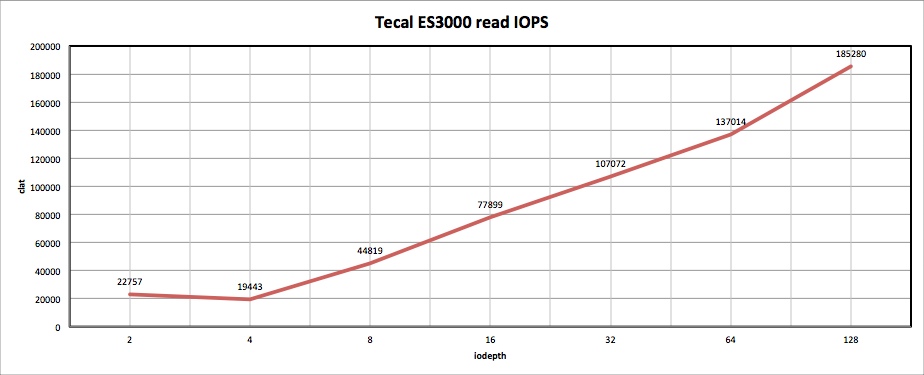

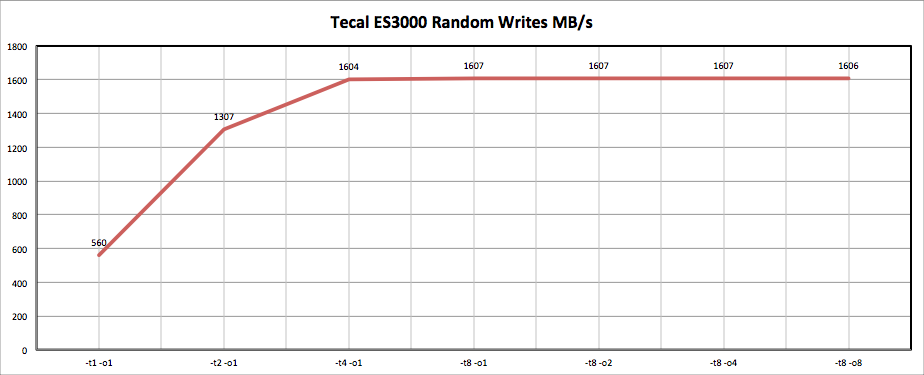

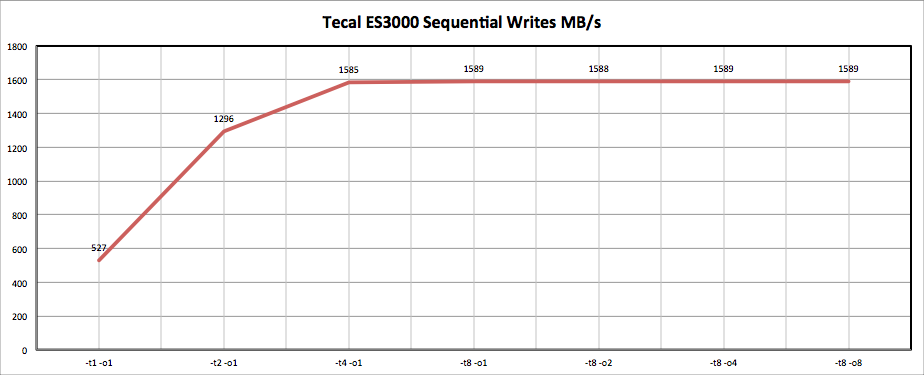

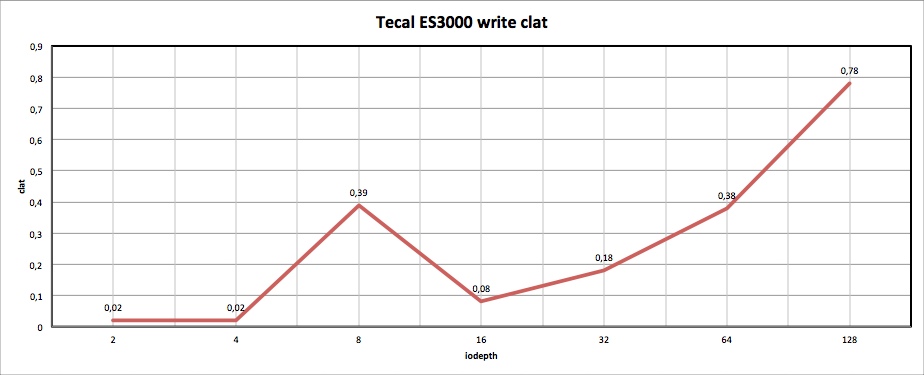

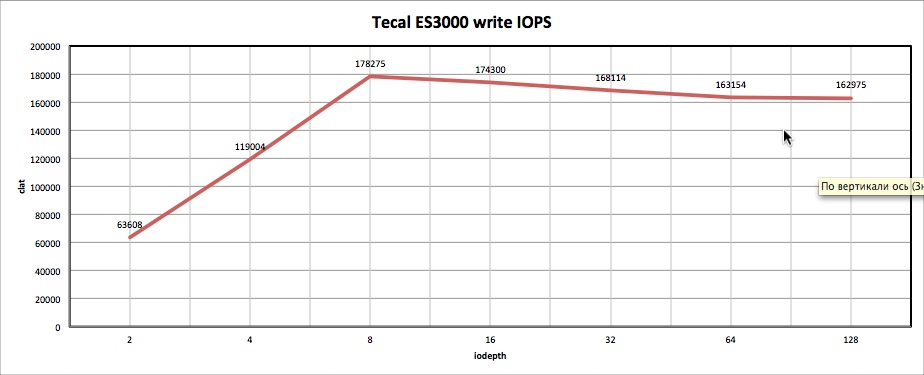

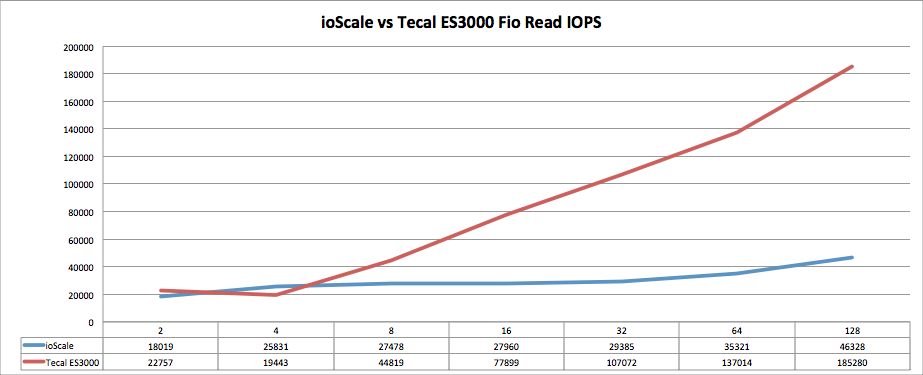

Fio

Huawei Tecal ES3000

Huawei Tecal ES3000

Huawei Tecal ES3000

Huawei Tecal ES3000

Для тех, кто хочет увидеть все цифры своими глазами, предлагаю лог тестов:

iodepth=2.txt

Jobs: 2 (f=2): [rw] [100.0% done] [49268K/259.2M/0K /s] [12.4K/66.4K/0 iops] [eta 00m:00s]
readtest: (groupid=0, jobs=1): err= 0: pid=1554: Tue Aug 20 16:50:23 2013
read: io=320033MB, bw=91032KB/s, iops=22757, runt=3600001msec
slat (usec): min=4, max=339, avg= 6.26, stdev= 1.53
clat (usec): min=1, max=3712, avg=78.73, stdev=183.19
lat (usec): min=20, max=3719, avg=85.29, stdev=183.25
clat percentiles (usec):
| 1.00th=[ 19], 5.00th=[ 20], 10.00th=[ 21], 20.00th=[ 23],
| 30.00th=[ 24], 40.00th=[ 27], 50.00th=[ 30], 60.00th=[ 35],
| 70.00th=[ 97], 80.00th=[ 108], 90.00th=[ 116], 95.00th=[ 124],
| 99.00th=[ 1192], 99.50th=[ 1624], 99.90th=[ 2096], 99.95th=[ 2160],
| 99.99th=[ 2256]
bw (KB/s): min=46464, max=199048, per=100.00%, avg=91050.66, stdev=41261.48
lat (usec): 2=0.01%, 4=0.01%, 10=0.01%, 20=2.09%, 50=63.87%
lat (usec): 100=7.40%, 250=24.06%, 500=0.58%, 750=0.55%, 1000=0.27%
lat (msec): 2=1.03%, 4=0.16%
cpu: usr=11.17%, sys=22.53%, ctx=60379444, majf=0, minf=30
IO depths: 1=0.1%, 2=100.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
issued: total=r=81928562/w=0/d=0, short=r=0/w=0/d=0
writetest: (groupid=0, jobs=1): err= 0: pid=1555: Tue Aug 20 16:50:23 2013
write: io=894492MB, bw=254433KB/s, iops=63608, runt=3600001msec
slat (usec): min=5, max=337, avg= 6.57, stdev= 1.46
clat (usec): min=1, max=3298, avg=22.30, stdev= 6.88
lat (usec): min=15, max=3305, avg=29.16, stdev= 6.91
clat percentiles (usec):
| 1.00th=[ 10], 5.00th=[ 11], 10.00th=[ 16], 20.00th=[ 18],
| 30.00th=[ 19], 40.00th=[ 20], 50.00th=[ 21], 60.00th=[ 22],
| 70.00th=[ 23], 80.00th=[ 27], 90.00th=[ 31], 95.00th=[ 38],
| 99.00th=[ 42], 99.50th=[ 43], 99.90th=[ 47], 99.95th=[ 49],
| 99.99th=[ 135]
bw (KB/s): min=232112, max=267808, per=100.00%, avg=254436.56, stdev=10041.23
lat (usec): 2=0.01%, 4=0.01%, 10=0.17%, 20=37.68%, 50=62.10%
lat (usec): 100=0.03%, 250=0.02%, 500=0.01%, 750=0.01%, 1000=0.01%
lat (msec): 2=0.01%, 4=0.01%
cpu: usr=27.53%, sys=56.05%, ctx=105077576, majf=0, minf=26
IO depths: 1=0.1%, 2=100.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
issued: total=r=0/w=228989861/d=0, short=r=0/w=0/d=0

Run status group 0 (all jobs):
READ: io=320033MB, aggrb=91031KB/s, minb=91031KB/s, maxb=91031KB/s, mint=3600001msec, maxt=3600001msec
WRITE: io=894492MB, aggrb=254433KB/s, minb=254433KB/s, maxb=254433KB/s, mint=3600001msec, maxt=3600001msec

Disk stats (read/write):
hioa: ios=81926750/228984220, merge=0/0, ticks=6008271/4115020, in_queue=11804978, util=100.00%

iodepth=4.txt

readtest: (groupid=0, jobs=1): err= 0: pid=5689: Wed Aug 21 10:14:15 2013
read: io=273421MB, bw=77773KB/s, iops=19443, runt=3600001msec
slat (usec): min=2, max=175, avg= 5.97, stdev= 1.72
clat (usec): min=1, max=6205, avg=197.18, stdev=323.44
lat (usec): min=23, max=6210, avg=203.43, stdev=323.35
clat percentiles (usec):
| 1.00th=[ 92], 5.00th=[ 95], 10.00th=[ 96], 20.00th=[ 98],
| 30.00th=[ 100], 40.00th=[ 108], 50.00th=[ 111], 60.00th=[ 113],
| 70.00th=[ 116], 80.00th=[ 122], 90.00th=[ 219], 95.00th=[ 804],
| 99.00th=[ 1848], 99.50th=[ 2064], 99.90th=[ 2320], 99.95th=[ 2608],
| 99.99th=[ 3536]
bw (KB/s): min=19088, max=137856, per=100.00%, avg=77783.92, stdev=41827.69
lat (usec): 2=0.01%, 4=0.01%, 10=0.01%, 20=0.01%, 50=0.01%
lat (usec): 100=27.95%, 250=62.47%, 500=2.36%, 750=1.93%, 1000=1.06%
lat (msec): 2=3.56%, 4=0.65%, 10=0.01%
cpu: usr=8.24%, sys=17.79%, ctx=48408103, majf=0, minf=29
IO depths: 1=0.1%, 2=0.1%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
issued: total=r=69995684/w=0/d=0, short=r=0/w=0/d=0
writetest: (groupid=0, jobs=1): err= 0: pid=5690: Wed Aug 21 10:14:15 2013
write: io=1121.9GB, bw=476018KB/s, iops=119004, runt=2471139msec
slat (usec): min=2, max=340, avg= 5.20, stdev= 1.87
clat (usec): min=1, max=2680, avg=26.67, stdev= 6.32
lat (usec): min=13, max=2689, avg=32.11, stdev= 6.92
clat percentiles (usec):
| 1.00th=[ 13], 5.00th=[ 17], 10.00th=[ 18], 20.00th=[ 21],
| 30.00th=[ 24], 40.00th=[ 26], 50.00th=[ 28], 60.00th=[ 28],
| 70.00th=[ 29], 80.00th=[ 31], 90.00th=[ 35], 95.00th=[ 37],
| 99.00th=[ 40], 99.50th=[ 43], 99.90th=[ 48], 99.95th=[ 51],
| 99.99th=[ 149]
bw (KB/s): min=429408, max=497760, per=100.00%, avg=476022.59, stdev=14215.05
lat (usec): 2=0.01%, 4=0.01%, 10=0.01%, 20=14.58%, 50=85.35%
lat (usec): 100=0.05%, 250=0.02%, 500=0.01%, 750=0.01%, 1000=0.01%
lat (msec): 2=0.01%, 4=0.01%
cpu: usr=30.75%, sys=65.47%, ctx=23021202, majf=0, minf=27
IO depths: 1=0.1%, 2=0.1%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
issued: total=r=0/w=294076416/d=0, short=r=0/w=0/d=0

Run status group 0 (all jobs):
READ: io=273421MB, aggrb=77772KB/s, minb=77772KB/s, maxb=77772KB/s, mint=3600001msec, maxt=3600001msec
WRITE: io=1121.9GB, aggrb=476017KB/s, minb=476017KB/s, maxb=476017KB/s, mint=2471139msec, maxt=2471139msec

Disk stats (read/write):
hioa: ios=69987336/294076416, merge=0/0, ticks=13631836/5845410, in_queue=21021050, util=100.00%

iodepth=8.txt

readtest: (groupid=0, jobs=1): err= 0: pid=6172: Wed Aug 21 12:07:47 2013
read: io=630280MB, bw=179280KB/s, iops=44819, runt=3600001msec
slat (usec): min=2, max=354, avg= 5.64, stdev= 1.67
clat (usec): min=0, max=9261, avg=170.62, stdev=270.59
lat (usec): min=22, max=9265, avg=176.53, stdev=270.24
clat percentiles (usec):
| 1.00th=[ 91], 5.00th=[ 94], 10.00th=[ 96], 20.00th=[ 99],
| 30.00th=[ 103], 40.00th=[ 108], 50.00th=[ 111], 60.00th=[ 114],
| 70.00th=[ 116], 80.00th=[ 122], 90.00th=[ 145], 95.00th=[ 486],
| 99.00th=[ 1704], 99.50th=[ 1960], 99.90th=[ 2288], 99.95th=[ 2480],
| 99.99th=[ 3408]
bw (KB/s): min=37136, max=269272, per=100.00%, avg=179292.55, stdev=98012.47
lat (usec): 2=0.01%, 4=0.01%, 10=0.01%, 20=0.01%, 50=0.01%
lat (usec): 100=21.39%, 250=72.07%, 500=1.60%, 750=1.30%, 1000=0.75%
lat (msec): 2=2.43%, 4=0.45%, 10=0.01%
cpu: usr=15.29%, sys=34.15%, ctx=68413484, majf=0, minf=35
IO depths: 1=0.1%, 2=0.1%, 4=0.1%, 8=100.0%, 16=0.0%, 32=0.0%, >=64=0.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.1%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
issued: total=r=161351713/w=0/d=0, short=r=0/w=0/d=0
writetest: (groupid=0, jobs=1): err= 0: pid=6173: Wed Aug 21 12:07:47 2013
write: io=1121.9GB, bw=713103KB/s, iops=178275, runt=1649560msec
slat (usec): min=2, max=243, avg= 3.81, stdev= 1.20
clat (usec): min=7, max=6220, avg=39.86, stdev=19.62
lat (usec): min=13, max=6235, avg=43.84, stdev=19.65
clat percentiles (usec):
| 1.00th=[ 27], 5.00th=[ 31], 10.00th=[ 32], 20.00th=[ 35],
| 30.00th=[ 38], 40.00th=[ 38], 50.00th=[ 39], 60.00th=[ 40],
| 70.00th=[ 42], 80.00th=[ 44], 90.00th=[ 46], 95.00th=[ 49],
| 99.00th=[ 63], 99.50th=[ 66], 99.90th=[ 75], 99.95th=[ 143],
| 99.99th=[ 972]
bw (KB/s): min=502376, max=736512, per=100.00%, avg=713109.81, stdev=37391.00
lat (usec): 10=0.01%, 20=0.01%, 50=95.11%, 100=4.82%, 250=0.04%
lat (usec): 500=0.01%, 750=0.01%, 1000=0.01%
lat (msec): 2=0.01%, 4=0.01%, 10=0.01%
cpu: usr=31.79%, sys=67.68%, ctx=42454, majf=0, minf=25
IO depths: 1=0.1%, 2=0.1%, 4=0.1%, 8=100.0%, 16=0.0%, 32=0.0%, >=64=0.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.1%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
issued: total=r=0/w=294076416/d=0, short=r=0/w=0/d=0

Run status group 0 (all jobs):
READ: io=630280MB, aggrb=179279KB/s, minb=179279KB/s, maxb=179279KB/s, mint=3600001msec, maxt=3600001msec
WRITE: io=1121.9GB, aggrb=713102KB/s, minb=713102KB/s, maxb=713102KB/s, mint=1649560msec, maxt=1649560msec

Disk stats (read/write):
hioa: ios=161345301/294076416, merge=0/0, ticks=26954841/6379390, in_queue=34949868, util=100.00%

iodepth=16.txt

readtest: (groupid=0, jobs=1): err= 0: pid=6666: Wed Aug 21 14:14:19 2013
read: io=1069.9GB, bw=311600KB/s, iops=77899, runt=3600001msec
slat (usec): min=2, max=323, avg= 5.34, stdev= 1.75
clat (usec): min=0, max=7901, avg=198.13, stdev=287.72
lat (usec): min=22, max=7904, avg=203.71, stdev=287.39
clat percentiles (usec):
| 1.00th=[ 97], 5.00th=[ 105], 10.00th=[ 112], 20.00th=[ 119],
| 30.00th=[ 123], 40.00th=[ 127], 50.00th=[ 131], 60.00th=[ 133],
| 70.00th=[ 139], 80.00th=[ 145], 90.00th=[ 179], 95.00th=[ 620],
| 99.00th=[ 1768], 99.50th=[ 2008], 99.90th=[ 2320], 99.95th=[ 2608],
| 99.99th=[ 3536]
bw (KB/s): min=74240, max=458832, per=100.00%, avg=311602.05, stdev=155866.17
lat (usec): 2=0.01%, 4=0.01%, 10=0.01%, 20=0.01%, 50=0.01%
lat (usec): 100=1.94%, 250=90.36%, 500=1.95%, 750=1.52%, 1000=0.87%
lat (msec): 2=2.84%, 4=0.52%, 10=0.01%
cpu: usr=20.27%, sys=47.10%, ctx=38705878, majf=0, minf=41
IO depths: 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=100.0%, 32=0.0%, >=64=0.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.1%, 32=0.0%, 64=0.0%, >=64=0.0%
issued: total=r=280439835/w=0/d=0, short=r=0/w=0/d=0
writetest: (groupid=0, jobs=1): err= 0: pid=6667: Wed Aug 21 14:14:19 2013
write: io=1121.9GB, bw=697203KB/s, iops=174300, runt=1687179msec
slat (usec): min=2, max=202, avg= 3.92, stdev= 1.29
clat (usec): min=18, max=5687, avg=86.66, stdev=28.76
lat (usec): min=21, max=5690, avg=90.75, stdev=28.82
clat percentiles (usec):
| 1.00th=[ 70], 5.00th=[ 75], 10.00th=[ 77], 20.00th=[ 80],
| 30.00th=[ 82], 40.00th=[ 83], 50.00th=[ 85], 60.00th=[ 87],
| 70.00th=[ 89], 80.00th=[ 91], 90.00th=[ 94], 95.00th=[ 97],
| 99.00th=[ 135], 99.50th=[ 143], 99.90th=[ 189], 99.95th=[ 298],
| 99.99th=[ 1592]
bw (KB/s): min=510752, max=727504, per=100.00%, avg=697209.70, stdev=34525.65
lat (usec): 20=0.01%, 50=0.01%, 100=96.19%, 250=3.75%, 500=0.01%
lat (usec): 750=0.01%, 1000=0.01%
lat (msec): 2=0.02%, 4=0.01%, 10=0.01%
cpu: usr=31.62%, sys=67.82%, ctx=13254, majf=0, minf=27
IO depths: 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=100.0%, 32=0.0%, >=64=0.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.1%, 32=0.0%, 64=0.0%, >=64=0.0%
issued: total=r=0/w=294076416/d=0, short=r=0/w=0/d=0

Run status group 0 (all jobs):
READ: io=1069.9GB, aggrb=311599KB/s, minb=311599KB/s, maxb=311599KB/s, mint=3600001msec, maxt=3600001msec
WRITE: io=1121.9GB, aggrb=697202KB/s, minb=697202KB/s, maxb=697202KB/s, mint=1687179msec, maxt=1687179msec

Disk stats (read/write):
hioa: ios=280416729/294076416, merge=0/0, ticks=50346429/6393813, in_queue=59670941, util=100.00%

iodepth=32.txt

readtest: (groupid=0, jobs=1): err= 0: pid=7036: Wed Aug 21 15:31:44 2013
read: io=1121.9GB, bw=428289KB/s, iops=107072, runt=2746524msec
slat (usec): min=2, max=259, avg= 3.88, stdev= 1.44
clat (usec): min=1, max=8424, avg=293.57, stdev=384.12
lat (usec): min=22, max=8431, avg=297.63, stdev=384.15
clat percentiles (usec):
| 1.00th=[ 97], 5.00th=[ 106], 10.00th=[ 114], 20.00th=[ 133],
| 30.00th=[ 147], 40.00th=[ 157], 50.00th=[ 167], 60.00th=[ 187],
| 70.00th=[ 215], 80.00th=[ 249], 90.00th=[ 604], 95.00th=[ 1272],
| 99.00th=[ 2008], 99.50th=[ 2160], 99.90th=[ 2640], 99.95th=[ 3120],
| 99.99th=[ 4016]
bw (KB/s): min=145288, max=736104, per=100.00%, avg=428270.00, stdev=192355.37
lat (usec): 2=0.01%, 10=0.01%, 20=0.01%, 50=0.01%, 100=1.95%
lat (usec): 250=78.41%, 500=8.42%, 750=2.95%, 1000=1.73%
lat (msec): 2=5.50%, 4=1.04%, 10=0.01%
cpu: usr=20.50%, sys=48.80%, ctx=43848496, majf=0, minf=57
IO depths: 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=0.1%, 32=100.0%, >=64=0.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.1%, 64=0.0%, >=64=0.0%
issued: total=r=294076416/w=0/d=0, short=r=0/w=0/d=0
writetest: (groupid=0, jobs=1): err= 0: pid=7037: Wed Aug 21 15:31:44 2013
write: io=1121.9GB, bw=672457KB/s, iops=168114, runt=1749264msec
slat (usec): min=2, max=233, avg= 4.07, stdev= 1.41
clat (usec): min=28, max=6005, avg=185.02, stdev=43.06
lat (usec): min=33, max=6008, avg=189.26, stdev=43.17
clat percentiles (usec):
| 1.00th=[ 163], 5.00th=[ 167], 10.00th=[ 171], 20.00th=[ 175],
| 30.00th=[ 177], 40.00th=[ 179], 50.00th=[ 183], 60.00th=[ 185],
| 70.00th=[ 187], 80.00th=[ 191], 90.00th=[ 197], 95.00th=[ 201],
| 99.00th=[ 286], 99.50th=[ 302], 99.90th=[ 414], 99.95th=[ 1012],
| 99.99th=[ 2192]
bw (KB/s): min=494208, max=710120, per=100.00%, avg=672465.71, stdev=32089.17
lat (usec): 50=0.01%, 100=0.01%, 250=98.23%, 500=1.68%, 750=0.02%
lat (usec): 1000=0.02%
lat (msec): 2=0.04%, 4=0.01%, 10=0.01%
cpu: usr=31.03%, sys=68.42%, ctx=13573, majf=0, minf=27
IO depths: 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=0.1%, 32=100.0%, >=64=0.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.1%, 64=0.0%, >=64=0.0%
issued: total=r=0/w=294076416/d=0, short=r=0/w=0/d=0

Run status group 0 (all jobs):
READ: io=1121.9GB, aggrb=428288KB/s, minb=428288KB/s, maxb=428288KB/s, mint=2746524msec, maxt=2746524msec
WRITE: io=1121.9GB, aggrb=672457KB/s, minb=672457KB/s, maxb=672457KB/s, mint=1749264msec, maxt=1749264msec

Disk stats (read/write):
hioa: ios=294061020/294076416, merge=0/0, ticks=72823490/6433110, in_queue=83767095, util=100.00%

iodepth=64.txt

readtest: (groupid=0, jobs=1): err= 0: pid=7386: Wed Aug 21 16:47:49 2013
read: io=1121.9GB, bw=548058KB/s, iops=137014, runt=2146316msec
slat (usec): min=2, max=341, avg= 3.59, stdev= 1.40
clat (usec): min=7, max=11049, avg=462.19, stdev=499.68
lat (usec): min=22, max=11052, avg=465.95, stdev=499.74
clat percentiles (usec):
| 1.00th=[ 100], 5.00th=[ 113], 10.00th=[ 123], 20.00th=[ 153],
| 30.00th=[ 191], 40.00th=[ 245], 50.00th=[ 306], 60.00th=[ 322],
| 70.00th=[ 338], 80.00th=[ 604], 90.00th=[ 1256], 95.00th=[ 1688],
| 99.00th=[ 2192], 99.50th=[ 2352], 99.90th=[ 3280], 99.95th=[ 3696],
| 99.99th=[ 4384]
bw (KB/s): min=269888, max=783664, per=100.00%, avg=548040.34, stdev=150613.08
lat (usec): 10=0.01%, 20=0.01%, 50=0.01%, 100=0.99%, 250=39.65%
lat (usec): 500=36.88%, 750=5.78%, 1000=3.74%
lat (msec): 2=10.73%, 4=2.20%, 10=0.03%, 20=0.01%
cpu: usr=22.98%, sys=57.80%, ctx=28745789, majf=0, minf=89
IO depths: 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=0.1%, 32=0.1%, >=64=100.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.1%, >=64=0.0%
issued: total=r=294076416/w=0/d=0, short=r=0/w=0/d=0
writetest: (groupid=0, jobs=1): err= 0: pid=7387: Wed Aug 21 16:47:49 2013
write: io=1121.9GB, bw=652619KB/s, iops=163154, runt=1802438msec
slat (usec): min=2, max=976, avg= 4.17, stdev= 1.53
clat (usec): min=25, max=8361, avg=386.78, stdev=72.02
lat (usec): min=28, max=8367, avg=391.13, stdev=72.15
clat percentiles (usec):
| 1.00th=[ 346], 5.00th=[ 354], 10.00th=[ 358], 20.00th=[ 366],
| 30.00th=[ 374], 40.00th=[ 378], 50.00th=[ 382], 60.00th=[ 386],
| 70.00th=[ 390], 80.00th=[ 394], 90.00th=[ 402], 95.00th=[ 410],
| 99.00th=[ 588], 99.50th=[ 628], 99.90th=[ 1432], 99.95th=[ 1992],
| 99.99th=[ 3024]
bw (KB/s): min=453352, max=690536, per=100.00%, avg=652628.16, stdev=33290.43
lat (usec): 50=0.01%, 100=0.01%, 250=0.01%, 500=97.75%, 750=2.04%
lat (usec): 1000=0.05%
lat (msec): 2=0.11%, 4=0.05%, 10=0.01%
cpu: usr=30.10%, sys=69.24%, ctx=15632, majf=0, minf=27
IO depths: 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=0.1%, 32=0.1%, >=64=100.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.1%, >=64=0.0%
issued: total=r=0/w=294076416/d=0, short=r=0/w=0/d=0

Run status group 0 (all jobs):
READ: io=1121.9GB, aggrb=548058KB/s, minb=548058KB/s, maxb=548058KB/s, mint=2146316msec, maxt=2146316msec
WRITE: io=1121.9GB, aggrb=652619KB/s, minb=652619KB/s, maxb=652619KB/s, mint=1802438msec, maxt=1802438msec

Disk stats (read/write):
hioa: ios=294036760/294076416, merge=0/0, ticks=111488349/8157809, in_queue=126392114, util=100.00%

iodepth=128.txt

readtest: (groupid=0, jobs=1): err= 0: pid=11370: Thu Aug 22 09:47:12 2013
read: io=1121.9GB, bw=741121KB/s, iops=185280, runt=1587197msec
slat (usec): min=2, max=227, avg= 3.50, stdev= 1.46
clat (usec): min=18, max=23463, avg=686.08, stdev=472.74
lat (usec): min=21, max=23466, avg=689.75, stdev=472.74
clat percentiles (usec):
| 1.00th=[ 153], 5.00th=[ 258], 10.00th=[ 322], 20.00th=[ 398],
| 30.00th=[ 450], 40.00th=[ 494], 50.00th=[ 540], 60.00th=[ 580],
| 70.00th=[ 636], 80.00th=[ 836], 90.00th=[ 1416], 95.00th=[ 1848],
| 99.00th=[ 2320], 99.50th=[ 2448], 99.90th=[ 2704], 99.95th=[ 3024],
| 99.99th=[ 4192]
bw (KB/s): min=620536, max=755536, per=100.00%, avg=741126.44, stdev=14459.92
lat (usec): 20=0.01%, 50=0.01%, 100=0.03%, 250=4.48%, 500=36.63%
lat (usec): 750=36.78%, 1000=5.78%
lat (msec): 2=12.96%, 4=3.33%, 10=0.01%, 20=0.01%, 50=0.01%
cpu: usr=26.85%, sys=72.48%, ctx=781809, majf=0, minf=153
IO depths: 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=0.1%, 32=0.1%, >=64=100.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.1%
issued: total=r=294076416/w=0/d=0, short=r=0/w=0/d=0
writetest: (groupid=0, jobs=1): err= 0: pid=11371: Thu Aug 22 09:47:12 2013
write: io=1121.9GB, bw=651904KB/s, iops=162975, runt=1804416msec
slat (usec): min=2, max=234, avg= 4.23, stdev= 1.56
clat (usec): min=19, max=19162, avg=779.86, stdev=57.41
lat (usec): min=22, max=19165, avg=784.27, stdev=57.54
clat percentiles (usec):
| 1.00th=[ 684], 5.00th=[ 692], 10.00th=[ 700], 20.00th=[ 772],
| 30.00th=[ 780], 40.00th=[ 780], 50.00th=[ 788], 60.00th=[ 796],
| 70.00th=[ 796], 80.00th=[ 804], 90.00th=[ 812], 95.00th=[ 820],
| 99.00th=[ 844], 99.50th=[ 892], 99.90th=[ 932], 99.95th=[ 980],
| 99.99th=[ 1288]
bw (KB/s): min=573864, max=733784, per=100.00%, avg=651894.62, stdev=28749.69
lat (usec): 20=0.01%, 50=0.01%, 100=0.01%, 250=0.01%, 500=0.01%
lat (usec): 750=14.15%, 1000=85.81%
lat (msec): 2=0.03%, 4=0.01%, 10=0.01%, 20=0.01%
cpu: usr=29.86%, sys=70.09%, ctx=2444, majf=0, minf=27
IO depths: 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=0.1%, 32=0.1%, >=64=100.0%
submit: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete: 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.1%
issued: total=r=0/w=294076416/d=0, short=r=0/w=0/d=0

Run status group 0 (all jobs):
READ: io=1121.9GB, aggrb=741121KB/s, minb=741121KB/s, maxb=741121KB/s, mint=1587197msec, maxt=1587197msec
WRITE: io=1121.9GB, aggrb=651903KB/s, minb=651903KB/s, maxb=651903KB/s, mint=1804416msec, maxt=1804416msec

Disk stats (read/write):
hioa: ios=294076499/294047419, merge=0/0, ticks=104004141/6709023, in_queue=120968585, util=100.00%

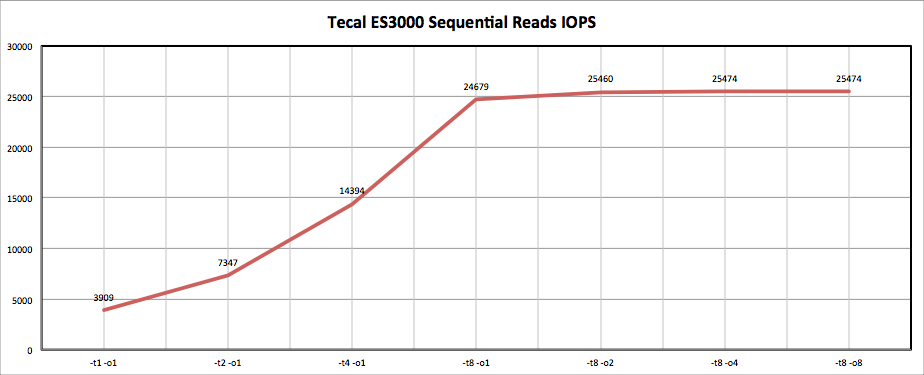

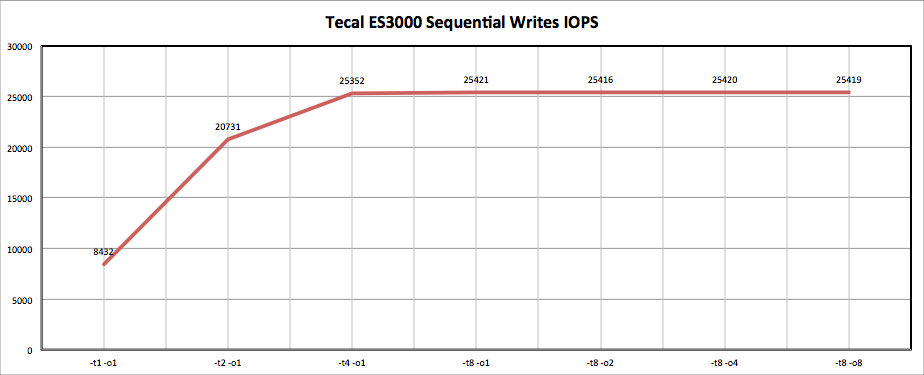

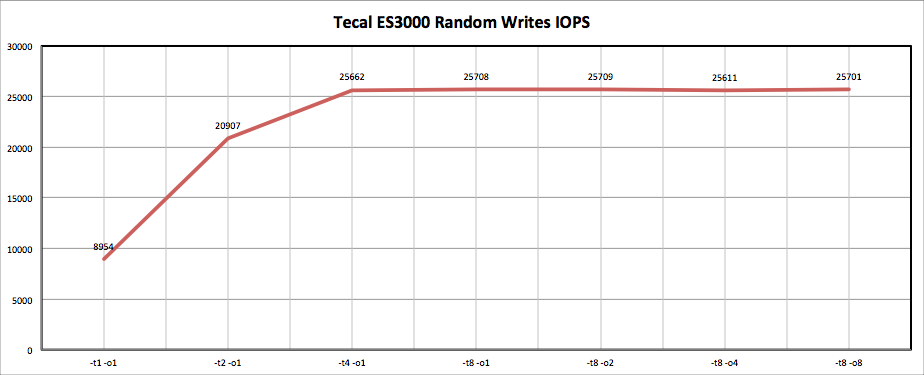

SQLIO

Huawei Tecal ES3000

Huawei Tecal ES3000

Huawei Tecal ES3000

Huawei Tecal ES3000

Huawei Tecal ES3000

Huawei Tecal ES3000

Huawei Tecal ES3000

Huawei Tecal ES3000

Для тех, кто хочет увидеть все цифры своими глазами, предлагаю лог тестов:

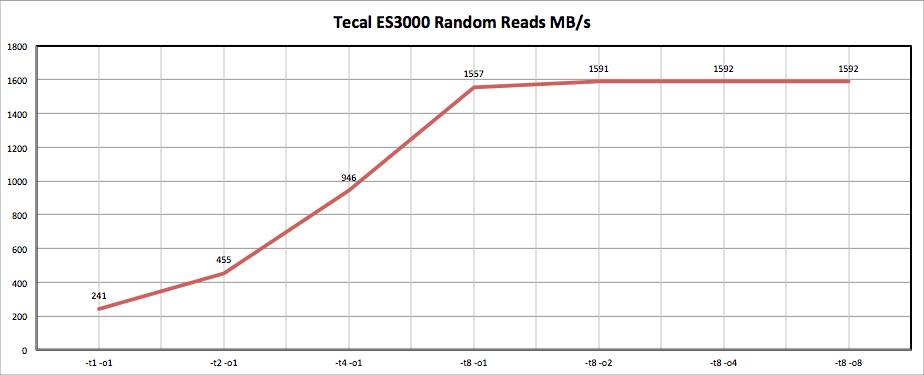

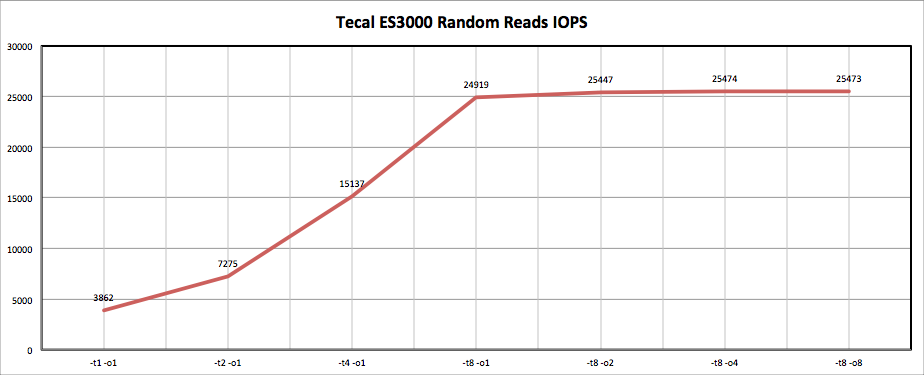

Random Reads Test.txt

E:sqlio.exe -BH -kR -fsequential -t1 -o1 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file E:testfile.dat with 1 thread (0) using mask 0x0 (0)
1 thread reading for 600 secs from file E:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 10000 MB for file: E:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 3862.49
MBs/sec: 241.40

E:sqlio.exe -BH -kR -fsequential -t2 -o1 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file E:testfile.dat with 2 threads (0-1) using mask 0x0 (0)
2 threads reading for 600 secs from file E:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 10000 MB for file: E:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 7274.67
MBs/sec: 454.66

E:sqlio.exe -BH -kR -fsequential -t4 -o1 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file E:testfile.dat with 4 threads (0-3) using mask 0x0 (0)
4 threads reading for 600 secs from file E:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 10000 MB for file: E:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 15136.69
MBs/sec: 946.04

E:sqlio.exe -BH -kR -frandom -t8 -o2 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file E:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads reading for 600 secs from file E:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 2 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 10000 MB for file: E:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 25457.72
MBs/sec: 1591.10

E:sqlio.exe -BH -kR -frandom -t8 -o4 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file E:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads reading for 600 secs from file E:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 4 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 10000 MB for file: E:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 25473.46
MBs/sec: 1592.09

E:sqlio.exe -BH -kR -frandom -t8 -o8 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file E:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads reading for 600 secs from file E:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 8 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 10000 MB for file: E:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 25474.25
MBs/sec: 1592.14

Random Writes Test.txt

E:sqlio.exe -BH -kW -frandom -t1 -o1 -s600 -b64 -FE:param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file E:testfile.dat with 1 thread (0) using mask 0x0 (0)
1 thread writing for 600 secs to file E:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 102400 MB for file: E:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 8954.36
MBs/sec: 559.64

C:UsersАдминистратор>E:sqlio.exe -BH -kW -frandom -t2 -o1 -s600 -b64 -FE:par
am.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file E:testfile.dat with 2 threads (0-1) using mask 0x0 (0)
2 threads writing for 600 secs to file E:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 102400 MB for file: E:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 20906.67
MBs/sec: 1306.66

C:UsersАдминистратор>E:sqlio.exe -BH -kW -frandom -t4 -o1 -s600 -b64 -FE:par
am.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file E:testfile.dat with 4 threads (0-3) using mask 0x0 (0)
4 threads writing for 600 secs to file E:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 102400 MB for file: E:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 25662.05
MBs/sec: 1603.87

C:UsersАдминистратор>E:sqlio.exe -BH -kW -frandom -t8 -o1 -s600 -b64 -FE:par
am.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file E:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads writing for 600 secs to file E:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 102400 MB for file: E:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 25707.68
MBs/sec: 1606.73

C:UsersАдминистратор>E:sqlio.exe -BH -kW -frandom -t8 -o2 -s600 -b64 -FE:par
am.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file E:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads writing for 600 secs to file E:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 2 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 102400 MB for file: E:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 25709.19
MBs/sec: 1606.82

C:UsersАдминистратор>E:sqlio.exe -BH -kW -frandom -t8 -o4 -s600 -b64 -FE:par
am.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file E:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads writing for 600 secs to file E:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 4 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 102400 MB for file: E:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 25711.34
MBs/sec: 1606.95

C:UsersАдминистратор>E:sqlio.exe -BH -kW -frandom -t8 -o8 -s600 -b64 -FE:par
am.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file E:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads writing for 600 secs to file E:testfile.dat
using 64KB random IOs
enabling multiple I/Os per thread with 8 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 102400 MB for file: E:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 25701.29
MBs/sec: 1606.33

Sequential Reads Test.txt

C:UsersАдминистратор>E:sqlio.exe -BH -kR -fsequential -t1 -o1 -s600 -b64 -FE:
param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file E:testfile.dat with 1 thread (0) using mask 0x0 (0)
1 thread reading for 600 secs from file E:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 102400 MB for file: E:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 3908.71
MBs/sec: 244.29

C:UsersАдминистратор>E:sqlio.exe -BH -kR -fsequential -t2 -o1 -s600 -b64 -FE:
param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file E:testfile.dat with 2 threads (0-1) using mask 0x0 (0)
2 threads reading for 600 secs from file E:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 102400 MB for file: E:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 7347.13
MBs/sec: 459.19

C:UsersАдминистратор>E:sqlio.exe -BH -kR -fsequential -t4 -o1 -s600 -b64 -FE:
param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file E:testfile.dat with 4 threads (0-3) using mask 0x0 (0)
4 threads reading for 600 secs from file E:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 102400 MB for file: E:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 14394.25
MBs/sec: 899.64

C:UsersАдминистратор>E:sqlio.exe -BH -kR -fsequential -t8 -o1 -s600 -b64 -FE:
param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file E:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads reading for 600 secs from file E:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 102400 MB for file: E:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 24678.71
MBs/sec: 1542.41

C:UsersАдминистратор>E:sqlio.exe -BH -kR -fsequential -t8 -o2 -s600 -b64 -FE:
param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file E:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads reading for 600 secs from file E:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 2 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 102400 MB for file: E:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 25459.87
MBs/sec: 1591.24

C:UsersАдминистратор>E:sqlio.exe -BH -kR -fsequential -t8 -o4 -s600 -b64 -FE:
param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file E:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads reading for 600 secs from file E:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 4 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 102400 MB for file: E:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 25474.61
MBs/sec: 1592.16

C:UsersАдминистратор>E:sqlio.exe -BH -kR -fsequential -t8 -o8 -s600 -b64 -FE:
param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file E:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads reading for 600 secs from file E:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 8 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 102400 MB for file: E:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 25474.79
MBs/sec: 1592.17

Sequential Writes Test.txt

C:UsersАдминистратор>E:sqlio.exe -BH -kW -fsequential -t1 -o1 -s600 -b64 -FE:
param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file E:testfile.dat with 1 thread (0) using mask 0x0 (0)
1 thread writing for 600 secs to file E:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 102400 MB for file: E:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 8432.26
MBs/sec: 527.01

C:UsersАдминистратор>E:sqlio.exe -BH -kW -fsequential -t2 -o1 -s600 -b64 -FE:
param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file E:testfile.dat with 2 threads (0-1) using mask 0x0 (0)
2 threads writing for 600 secs to file E:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 102400 MB for file: E:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 20731.04
MBs/sec: 1295.69

C:UsersАдминистратор>E:sqlio.exe -BH -kW -fsequential -t4 -o1 -s600 -b64 -FE:
param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file E:testfile.dat with 4 threads (0-3) using mask 0x0 (0)
4 threads writing for 600 secs to file E:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 102400 MB for file: E:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 25352.71
MBs/sec: 1584.54

C:UsersАдминистратор>E:sqlio.exe -BH -kW -fsequential -t8 -o1 -s600 -b64 -FE:
param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file E:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads writing for 600 secs to file E:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 1 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 102400 MB for file: E:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 25420.63
MBs/sec: 1588.78

C:UsersАдминистратор>E:sqlio.exe -BH -kW -fsequential -t8 -o2 -s600 -b64 -FE:
param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file E:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads writing for 600 secs to file E:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 2 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 102400 MB for file: E:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 25415.93
MBs/sec: 1588.49

C:UsersАдминистратор>E:sqlio.exe -BH -kW -fsequential -t8 -o4 -s600 -b64 -FE:
param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file E:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads writing for 600 secs to file E:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 4 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 102400 MB for file: E:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 25419.91
MBs/sec: 1588.74

C:UsersАдминистратор>E:sqlio.exe -BH -kW -fsequential -t8 -o8 -s600 -b64 -FE:
param.txt
sqlio v1.5.SG
parameter file used: E:param.txt
file E:testfile.dat with 8 threads (0-7) using mask 0x0 (0)
8 threads writing for 600 secs to file E:testfile.dat
using 64KB sequential IOs
enabling multiple I/Os per thread with 8 outstanding
buffering set to use hardware disk cache (but not file cache)
using specified size: 102400 MB for file: E:testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 25418.53
MBs/sec: 1588.65

Мы были приятно удивлены такими показателя производительности, поэтому составили график-сравнение с ioScale

Huawei Tecal ES3000

Huawei Tecal ES3000

Ещё хотелось бы осветить вопрос о ПО, который задаётся практически в каждой нашей статье — средства мониторинга. Здесь наш подопытный не далеко ушёл от своих собратьев по группе и так же не поддерживает SMART. Всё что есть — это небольшая утилита под Windows, которая выдаёт некоторое количество информации и позволяет перепрошить карту.

Huawei Tecal ES3000

Так же карта поддерживает SNMP протокол. По технической части хотелось бы ещё отметить, что карте требуется качественное охлаждения. Даже если в текущий момент она не используется, а просто подключена — нагрев радиатора достаточно сильный (в руке можно держать не более 10 секунд), поэтому нужно уделить особое внимание качеству охлаждения сервера (к примеру, поставить максимальное количество куллеров, если это ещё не сделано).

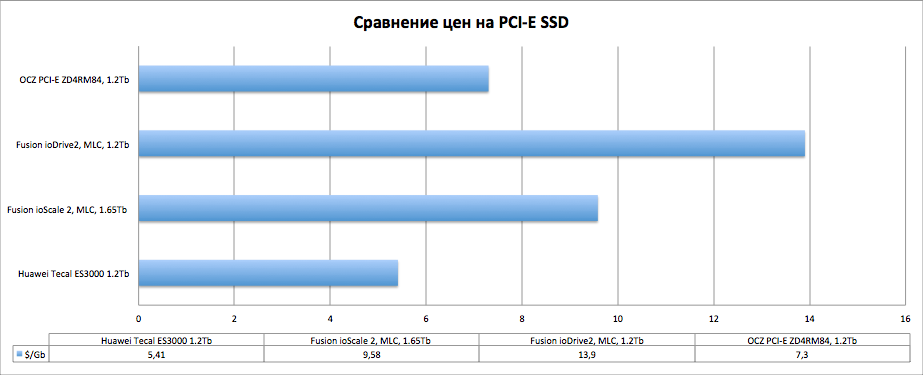

Подводя итоги, пожалуй, можно сказать что карта Huawei Tecal ES3000 является одной из лучших в классе, из тех, которые побывали у нас на тестировании. Но не только своими техническими показателями нас радует карта, она является и лидером по соотношению цена/качество в данной нише устройств.

Huawei Tecal ES3000

Гарантия на устройство — 3 года, но так же существует возможность приобретения расширения гарантии до необходимого уровня.

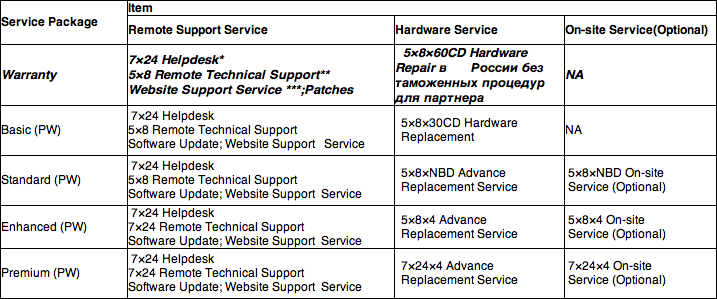

Варианты дополнительных гарантийных программ.

Huawei Tecal ES3000

Несмотря на то, что бренд Huawei у нас больше ассоциируется с сетевым оборудованием, их решение оказалось крайне успешным и имеет несколько технологических особенностей, приятно отличающие его от конкурентов в этом классе оборудования.

Напоминаем, что вы можете получить в DEMO данную карту, или мы предоставим удалённый сервер с установленной платой, сконфигурированный для ваших целей, и вы сможете провести тестирование удалённо. Для приобретения Huawei или запроса DEMO просьба обращаться к руководителю направления Чинчаку Игорю.

Автор KorP

Автор: Server_Unit

Источник


* - обязательные к заполнению поля


https://ajax.googleapis.com/ajax/libs/jquery/3.4.1/jquery.min.js
